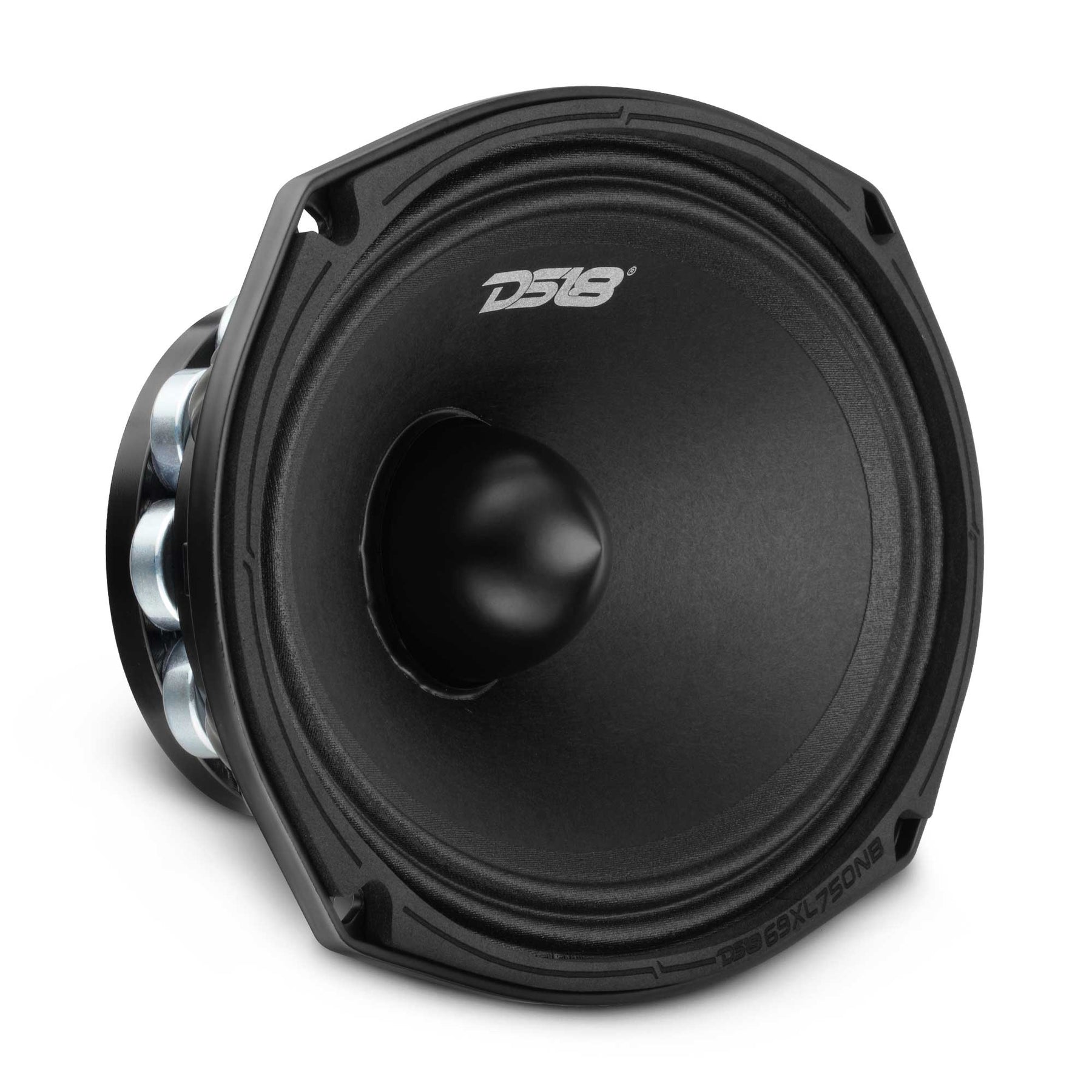

DS18 69XL750NB-4 6x9" Midrange Loudspeaker with Neodymium Rings and Aluminum Bullet — 750W MAX
Product Overview
Description
Key Features
- 375W RMS / 750W MAX power handling
- 97.5dB high sensitivity (1W/1m)
- Midrange coaxial design with aluminum bullet
- Neodymium ring motor — lightweight with controlled magnetic output
- Conical paper cone with treated cloth surround
- Built for pro audio and motorcycle builds
- Sold as: single (each) — grill not included
Product Overview
The DS18 69XL750NB-4 packs XL-series midrange output into the 6x9" footprint. High-efficiency neodymium rings keep mounting weight down while delivering controlled magnetic output, and the aluminum bullet extends response for vibrant vocals and smooth, razor-sharp mids from 80Hz to 12.5kHz. A conical paper cone with treated cloth surround and spider-cross leads stands up to intense loads in motorcycle fairings and pro audio builds alike.
SPECS
| SKU | 69XL750NB-4 |
| Nominal Diameter | 6x9" / 152 x 228mm |
| Nominal Impedance | 4-Ohm |
| RMS Power Handling | 375 Watts |
| MAX Power Handling | 750 Watts |
| Sensitivity (1W/1m) | 97.5dB |
| Frequency Response | 80Hz–12.5kHz |
| Recommended High-Pass Crossover | 100Hz |
| Voice Coil Diameter | 2" / 50.8mm |
| Voice Coil Former | Kapton |
| Winding Material | CCAW |
| Cone Material | Paper |
| Bullet Material | Aluminum (Black) |
| Surround Material | Cloth |
| Magnet Material | Neodymium Rings |
| Magnet Weight | 11.4 Oz |
| Basket Material | Aluminum (Satin Black) |
| Speaker Terminals | Push 12ga |

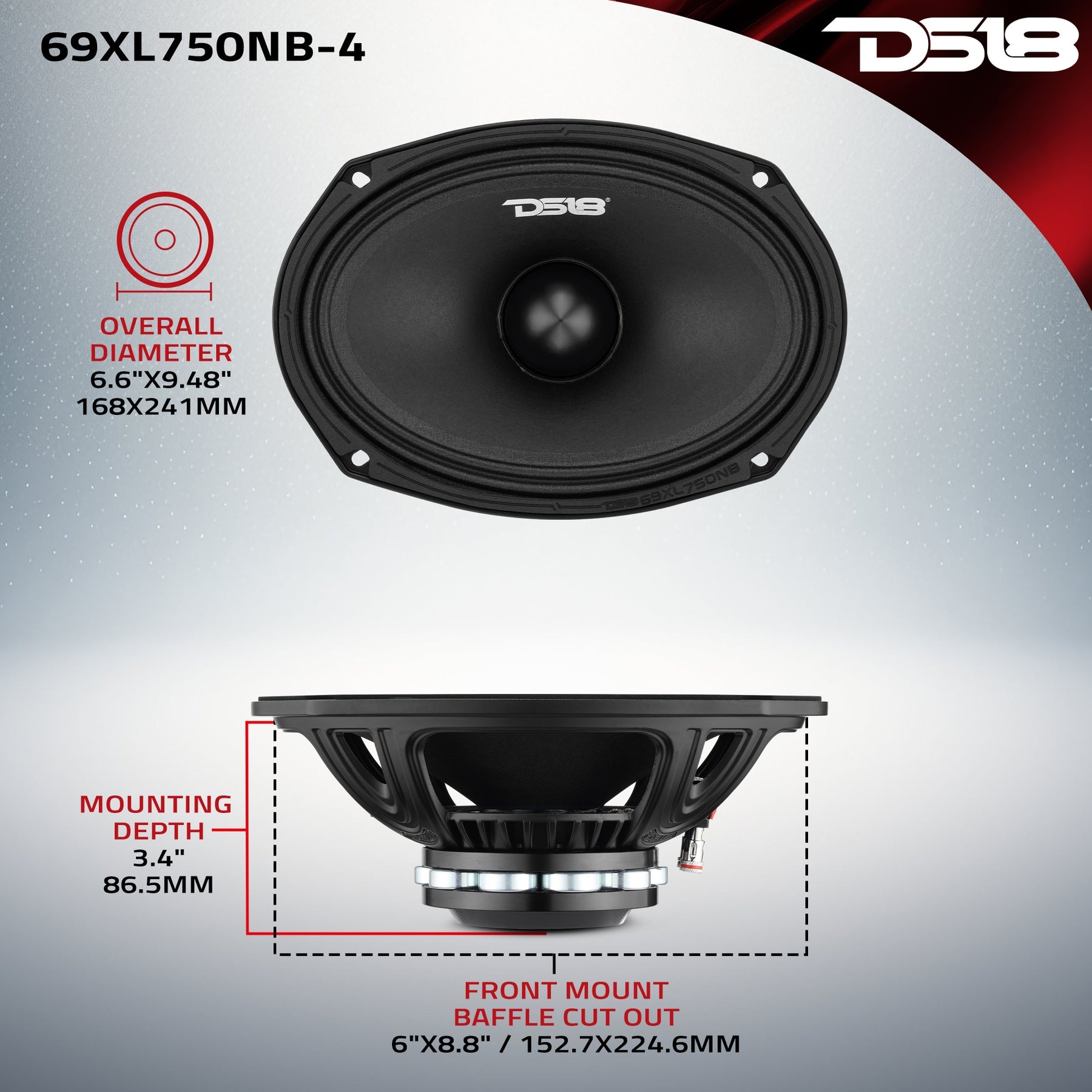

| Overall Diameter | 6.6" x 9.48" / 168 x 241mm |
| Overall Depth | 3.73" / 95mm |

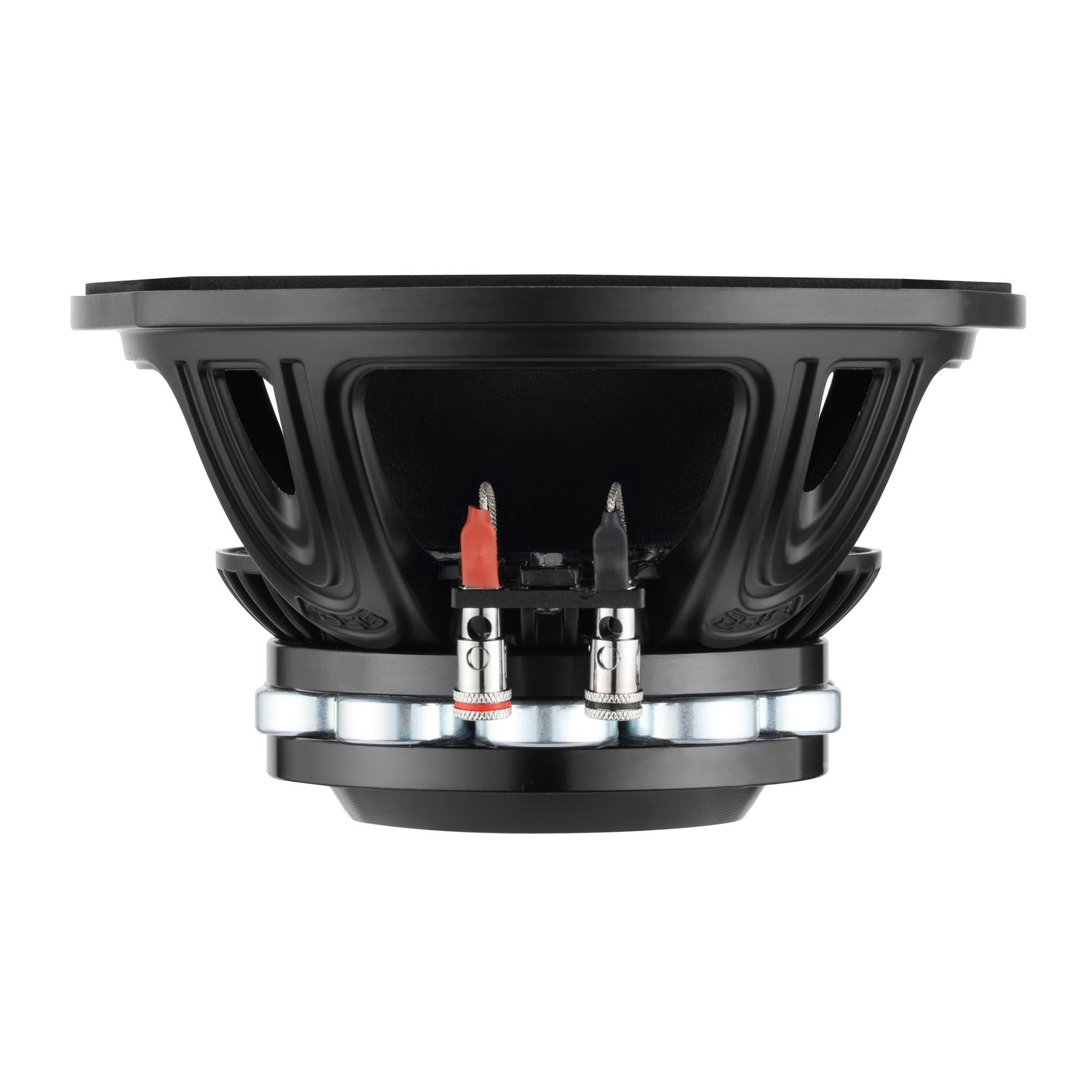

| Mounting Depth | 3.4" / 86.5mm |
| Front Mount Baffle Cutout | 6" x 8.8" / 152.7 x 224.6mm |
| Motor Diameter | 4.13" / 105mm |
| DC Resistance | 3.2 Ohms |
| Sold As | Single |
| Grill Included | No |
Rule the Water
King of the COVE
Free shipping on orders $100+
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
FAQs
Please read our FAQs page to find out more.
RMS vs. MAX power — which number do I actually care about?
RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.
What does the IP65 rating on DS18 marine gear actually mean?
It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.
How do I match an amplifier to my speakers without guessing?
Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.
Can I mix marine-grade gear into a standard car audio setup, or the reverse?
You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.
What gauge wiring kit do I need?
It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
