Product Overview

Description

Key Features

  • 6x9" high-sensitivity midrange speaker (100dB output)
  • 200W RMS / 400W MAX power handling
  • Neodymium magnet — lightweight, high efficiency
  • 100Hz–17kHz frequency range for clear vocals
  • Aluminum basket with Kapton voice coil and CCAW winding
  • Copper demodulating ring reduces distortion

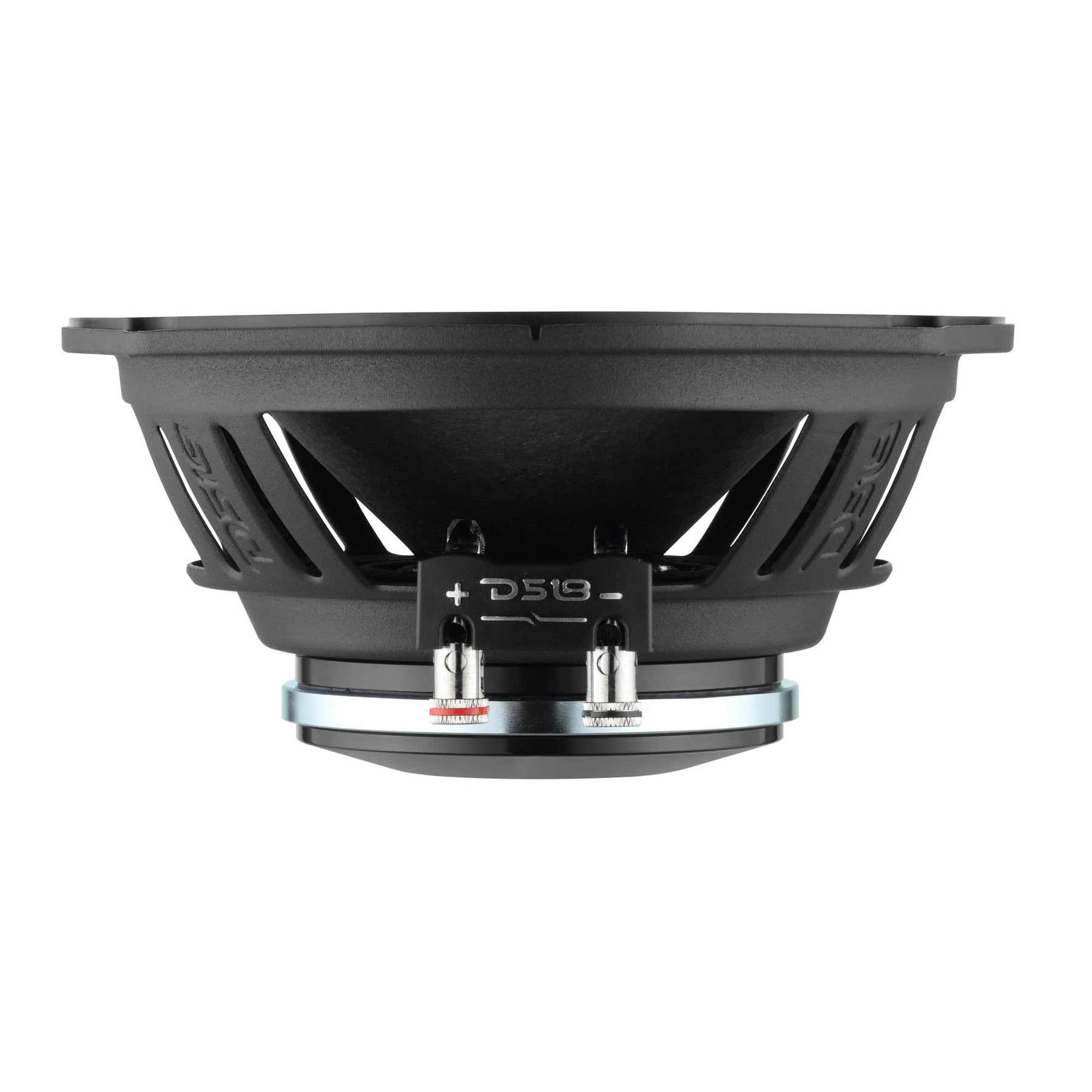

  • Shallow 2.9" mounting depth
  • Sold as: single (each) — grill not included

Product Overview

The DS18 69PRO400NMR-4 brings PRO-series high-sensitivity output to the 6x9" footprint. The neodymium motor keeps weight down while pushing 100dB sensitivity across a 100Hz–17kHz range, and the Kapton voice coil with CCAW winding manages heat under demanding loads. A copper demodulating ring cuts distortion, and the shallow 2.9" mounting depth fits where deeper drivers won't.

SPECS

SKU 69PRO400NMR-4
Nominal Diameter 6x9" / 152 x 228mm
Nominal Impedance 4-Ohm
RMS Power Handling 200 Watts
MAX Power Handling 400 Watts
Sensitivity (1W/1m) 100dB
Frequency Response 100Hz–17kHz
Recommended High-Pass Crossover 120Hz
Voice Coil Diameter 1.5" / 38.6mm
Voice Coil Former Kapton
Winding Material CCAW

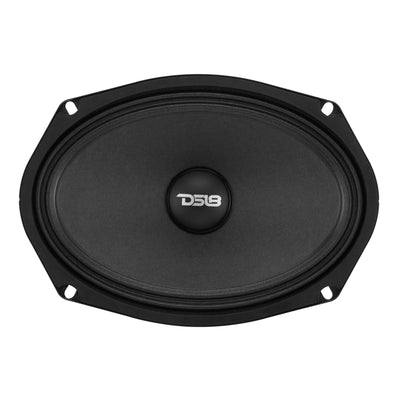

Cone Material Paper (Curvilinear)
Dust Cap Material Paper
Surround Material Cloth
Basket Material Aluminum

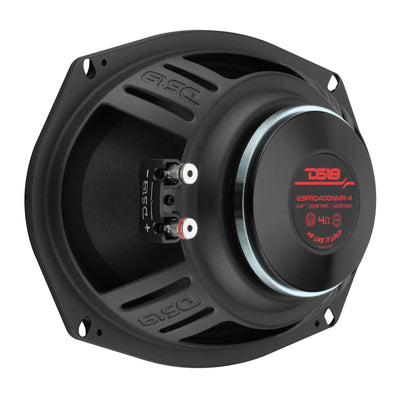

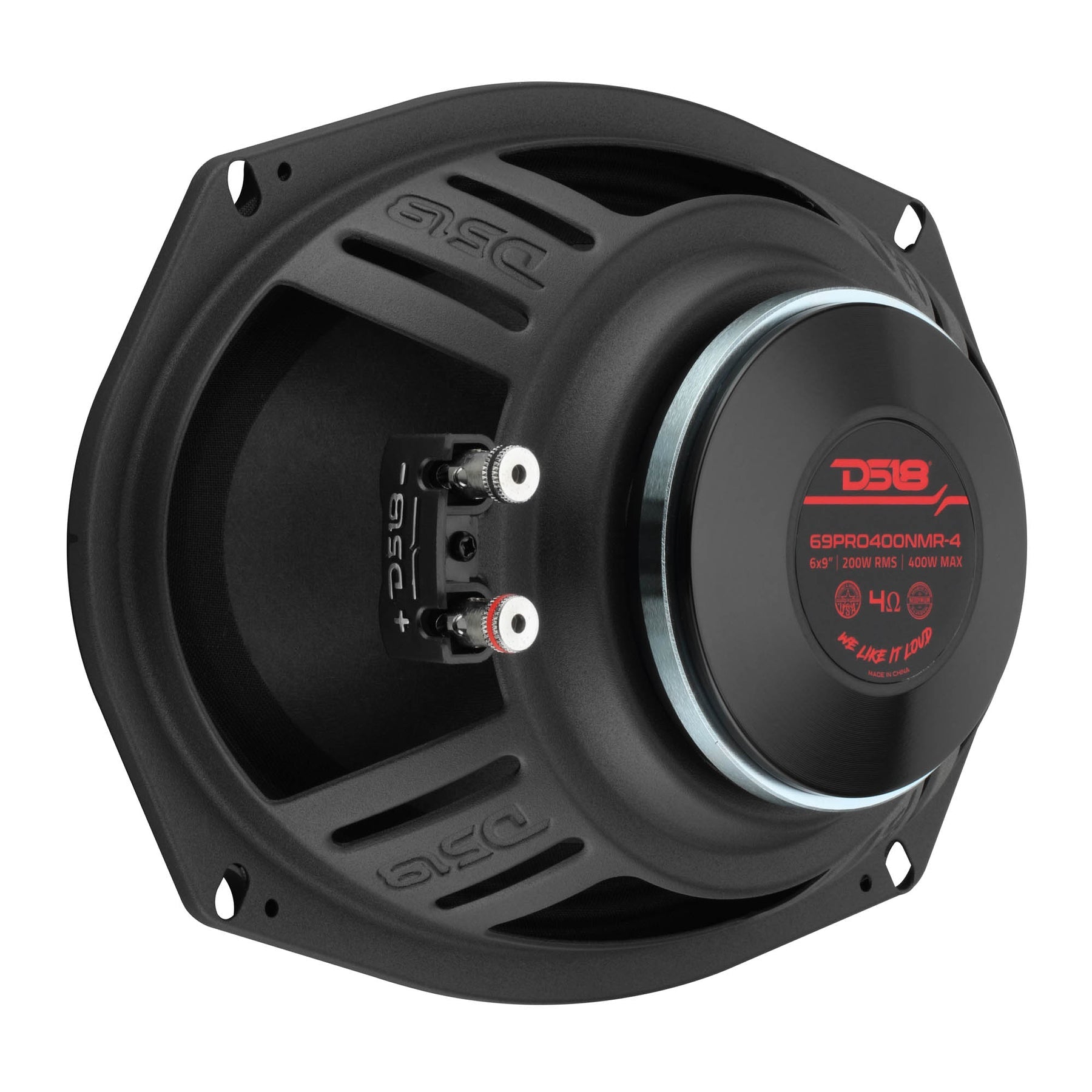

Magnet Material Neodymium
Magnet Weight 8 Oz
Demodulating Rings Copper Ring
Speaker Terminals Push 16ga
Overall Diameter 6.4" x 9.2" / 164 x 234mm
Overall Depth 3.1" / 79mm
Mounting Depth 2.9" / 74.8mm
Front Mount Baffle Cutout 5.7" x 8.5" / 145 x 218mm
Motor Diameter 3.5" / 90mm
Sold As Single
Grill Included No

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
