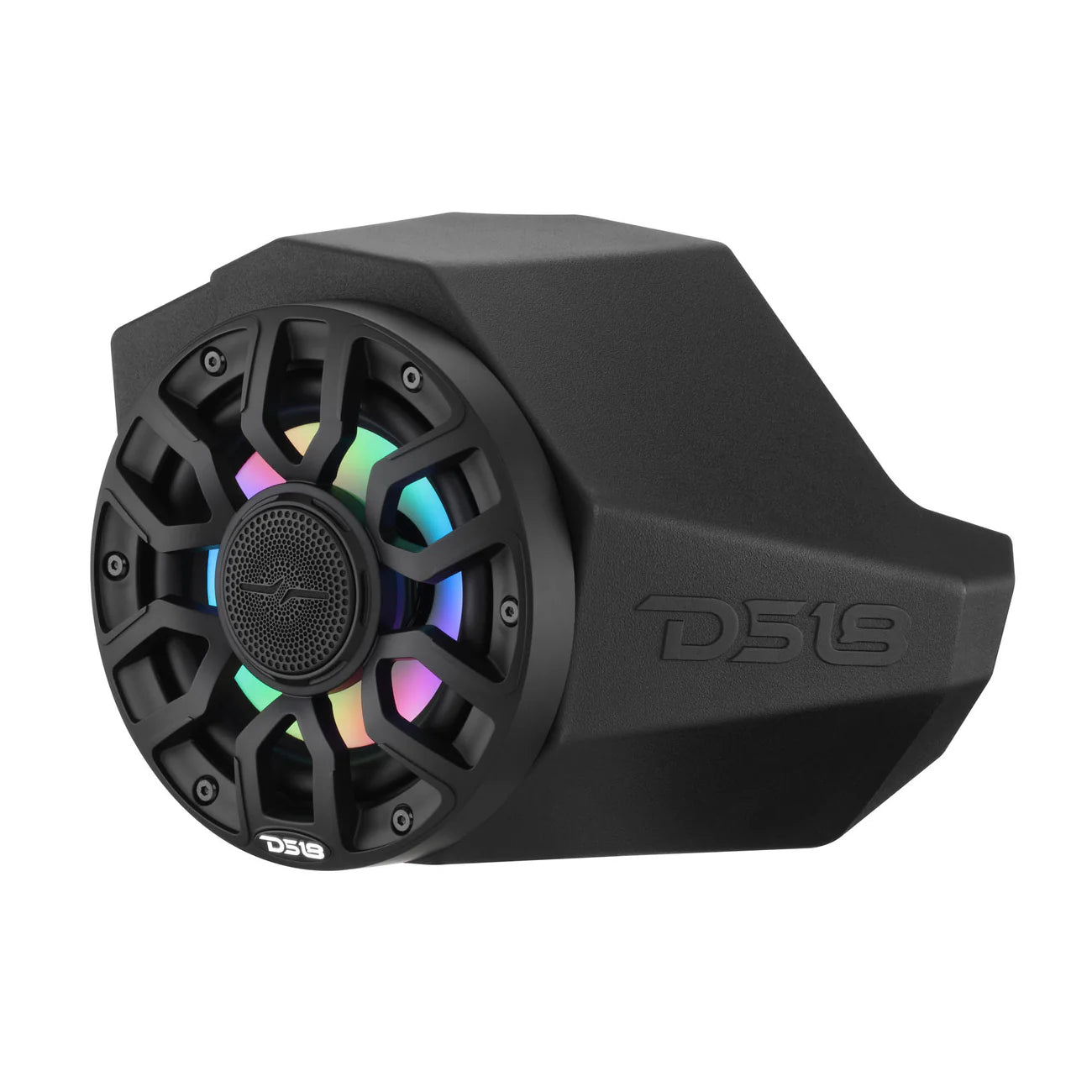

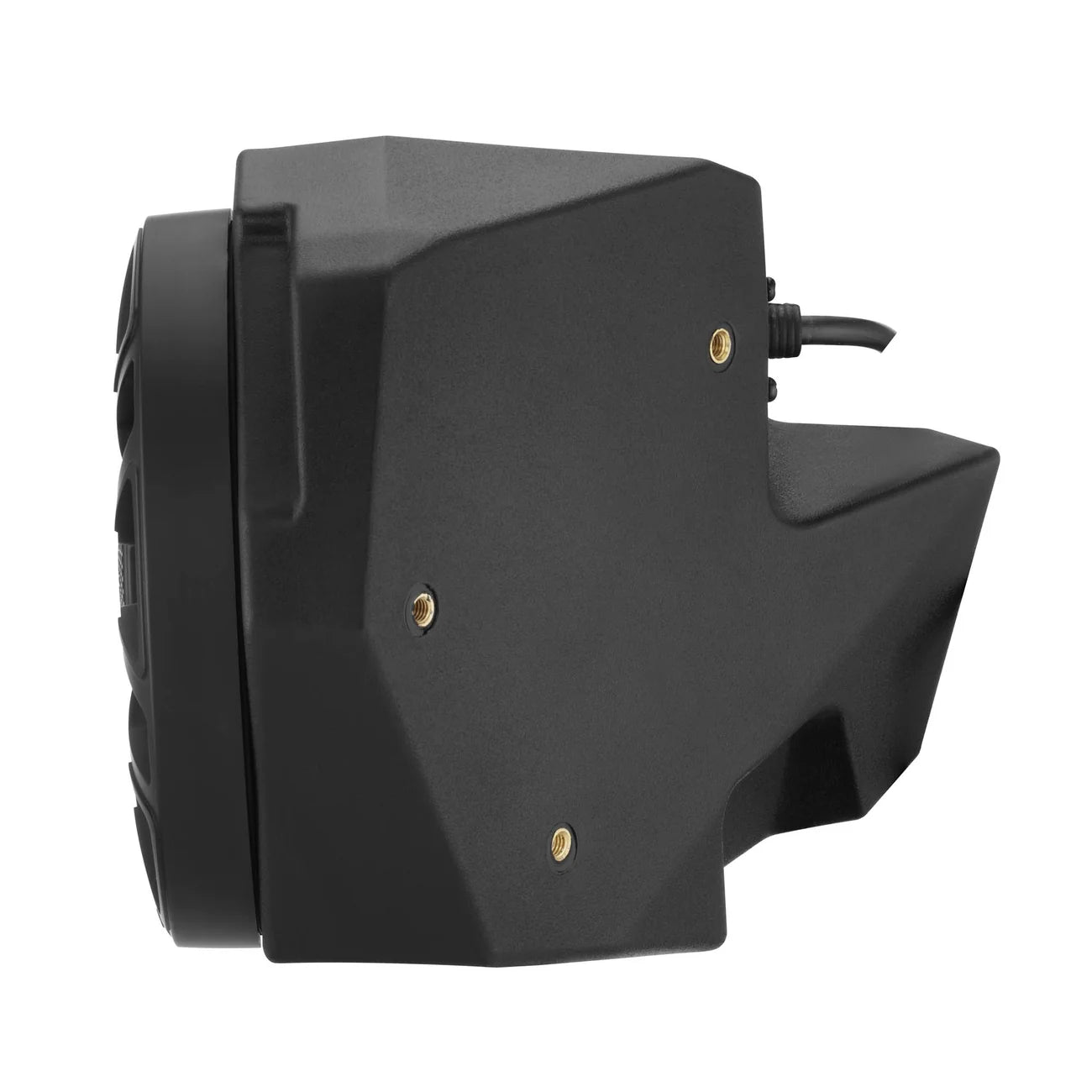

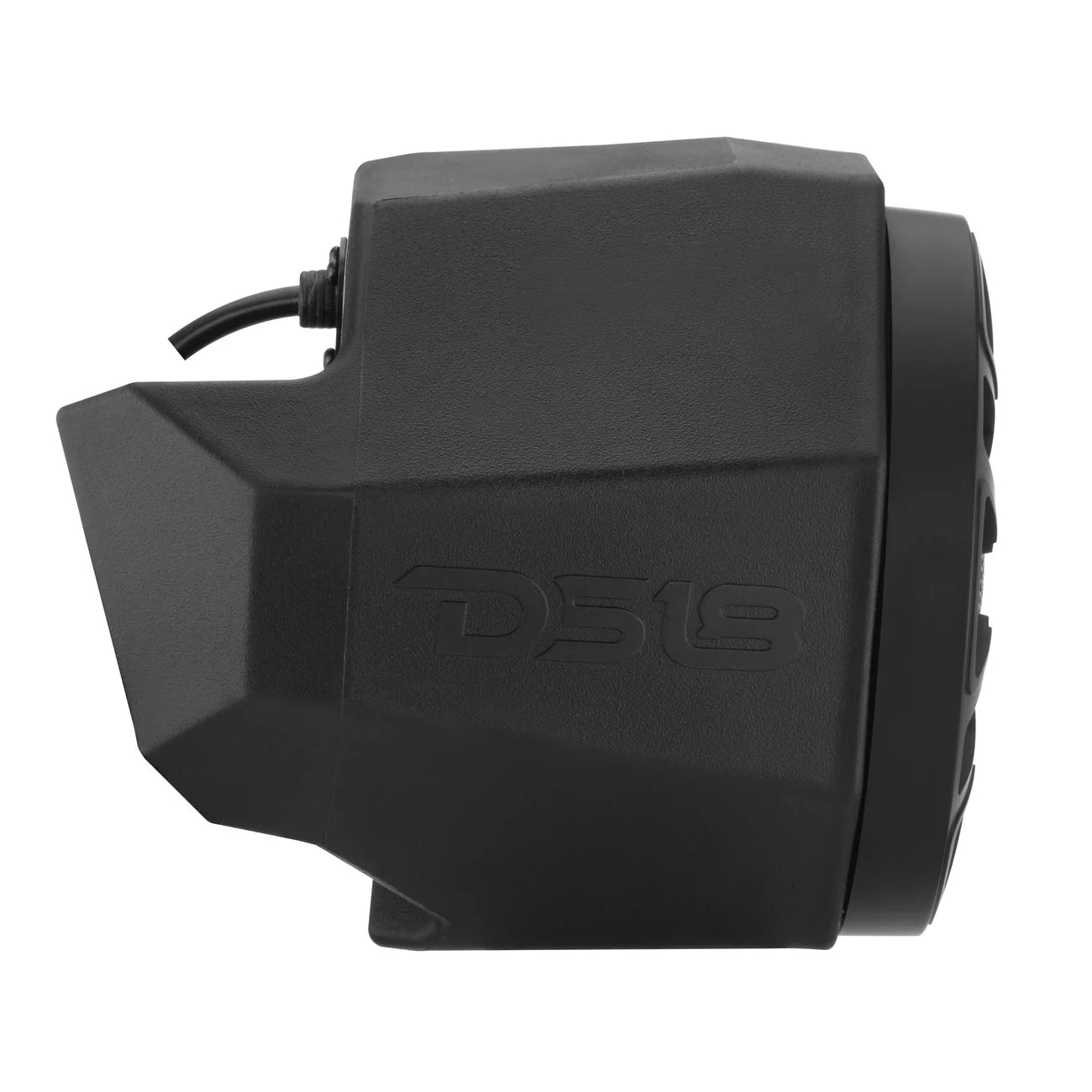

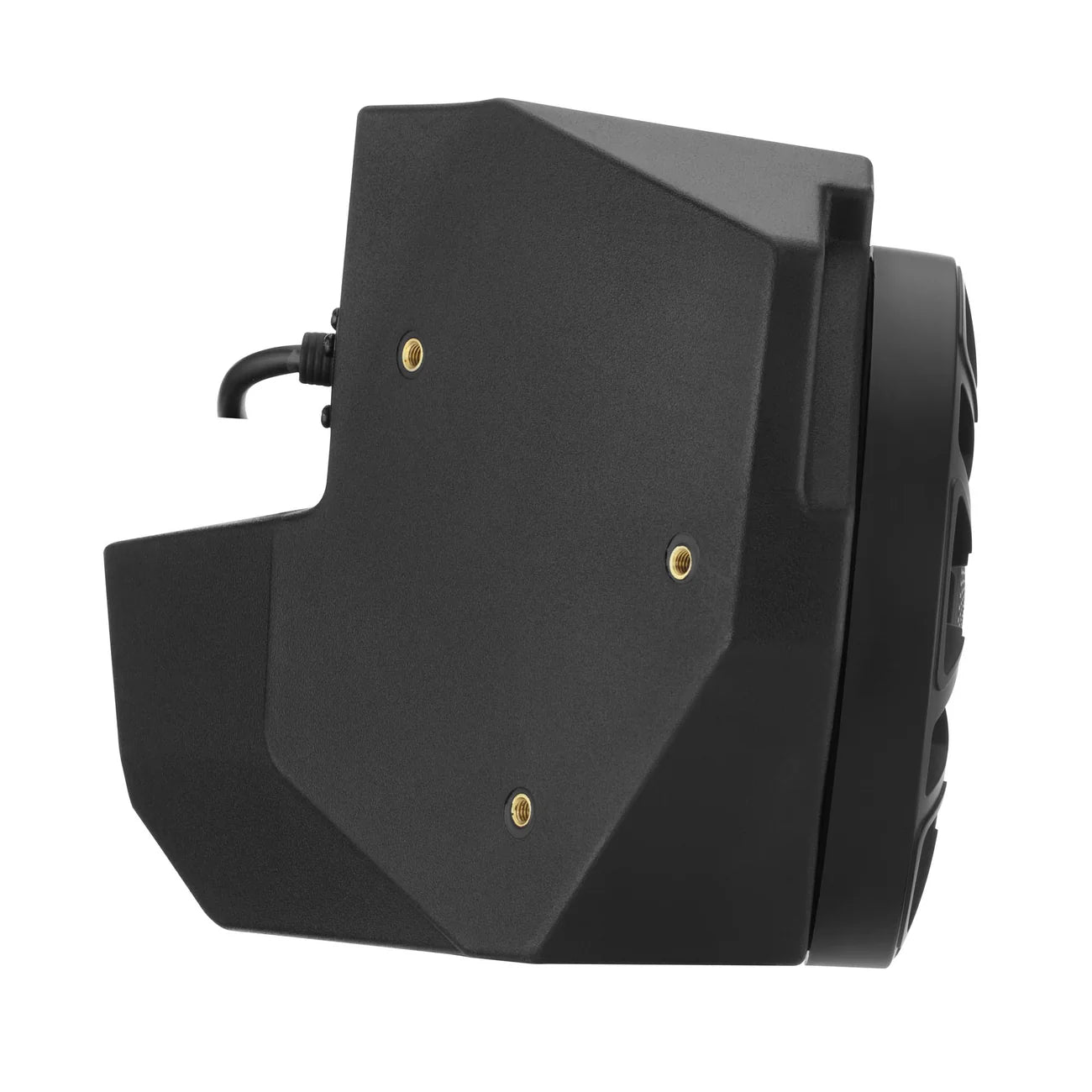

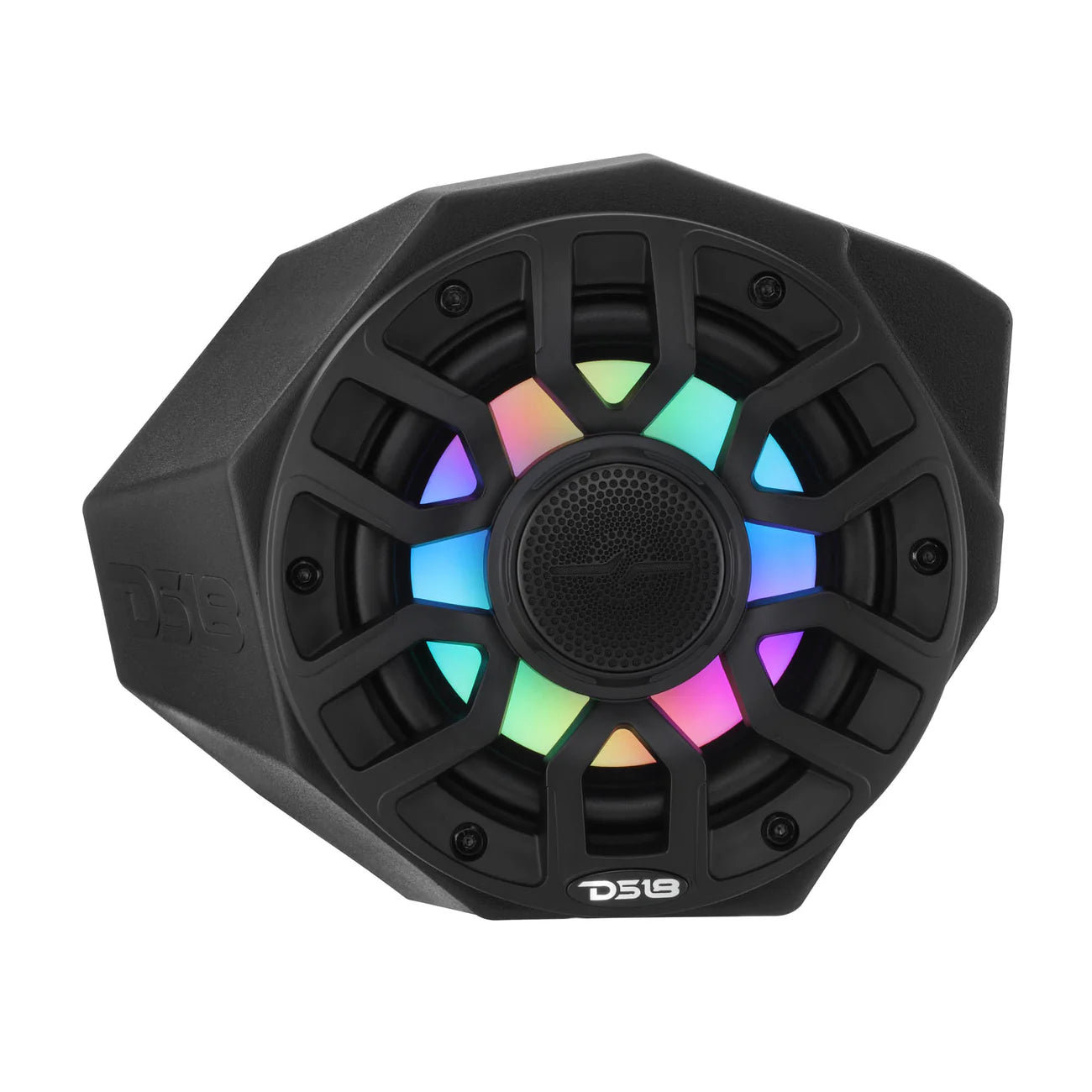

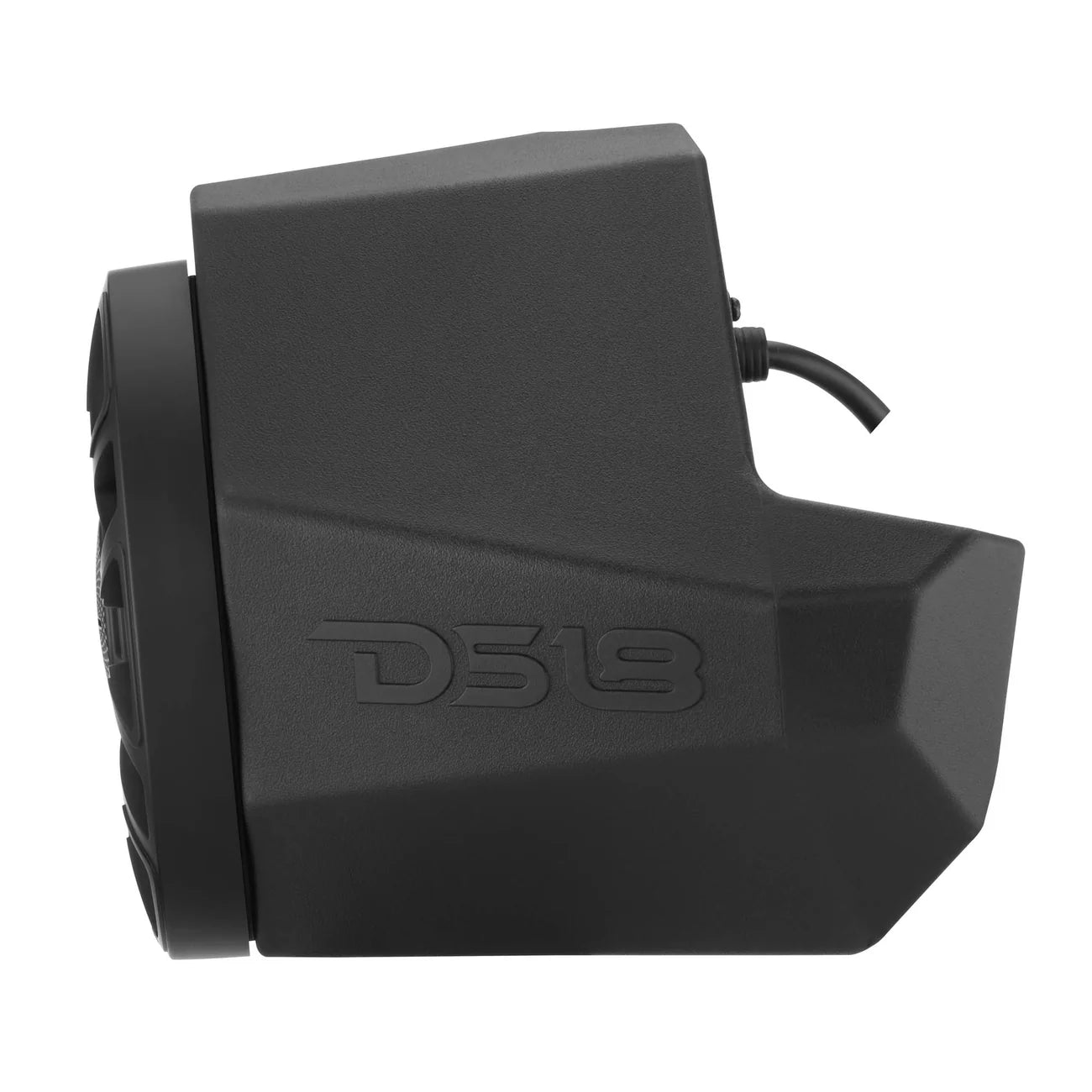

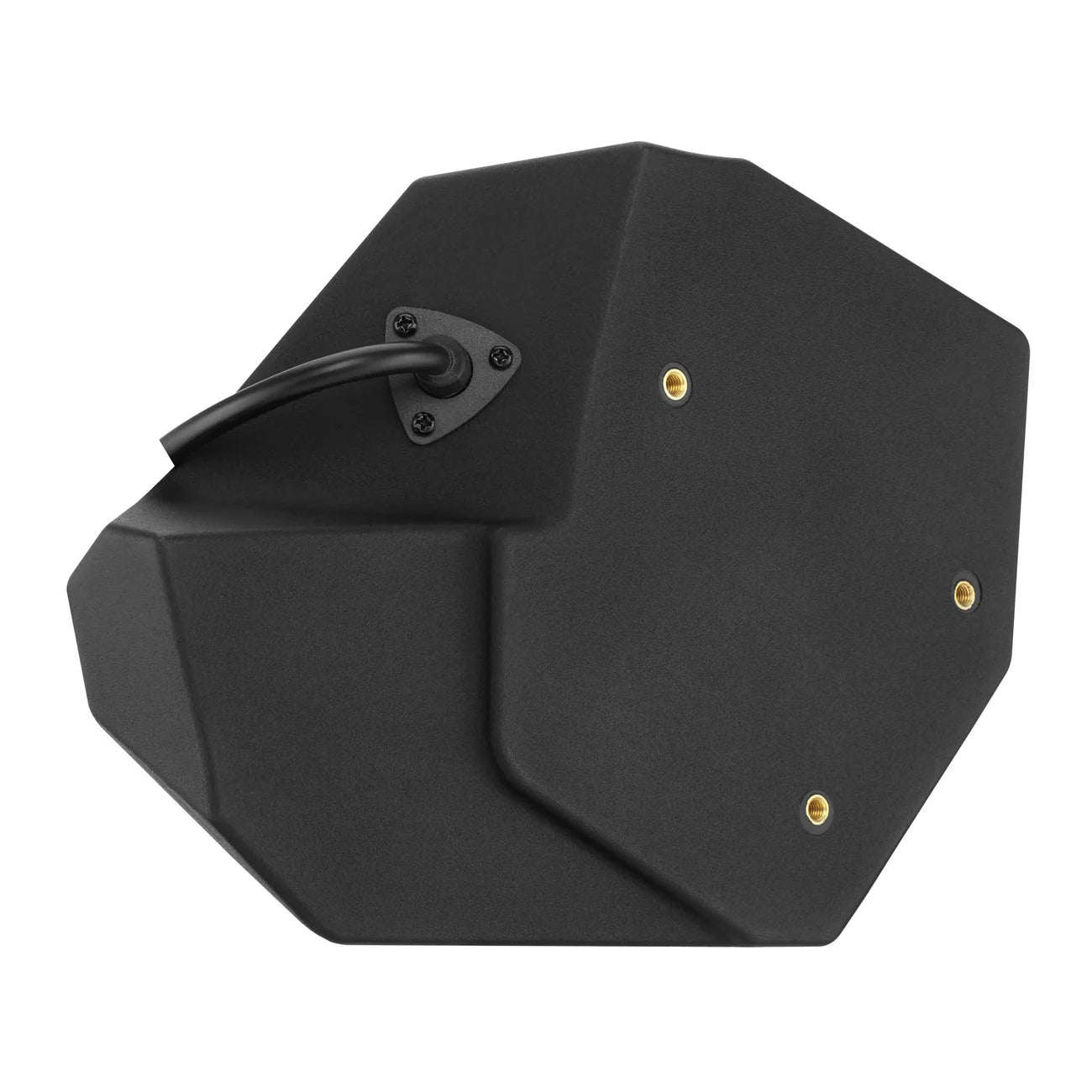

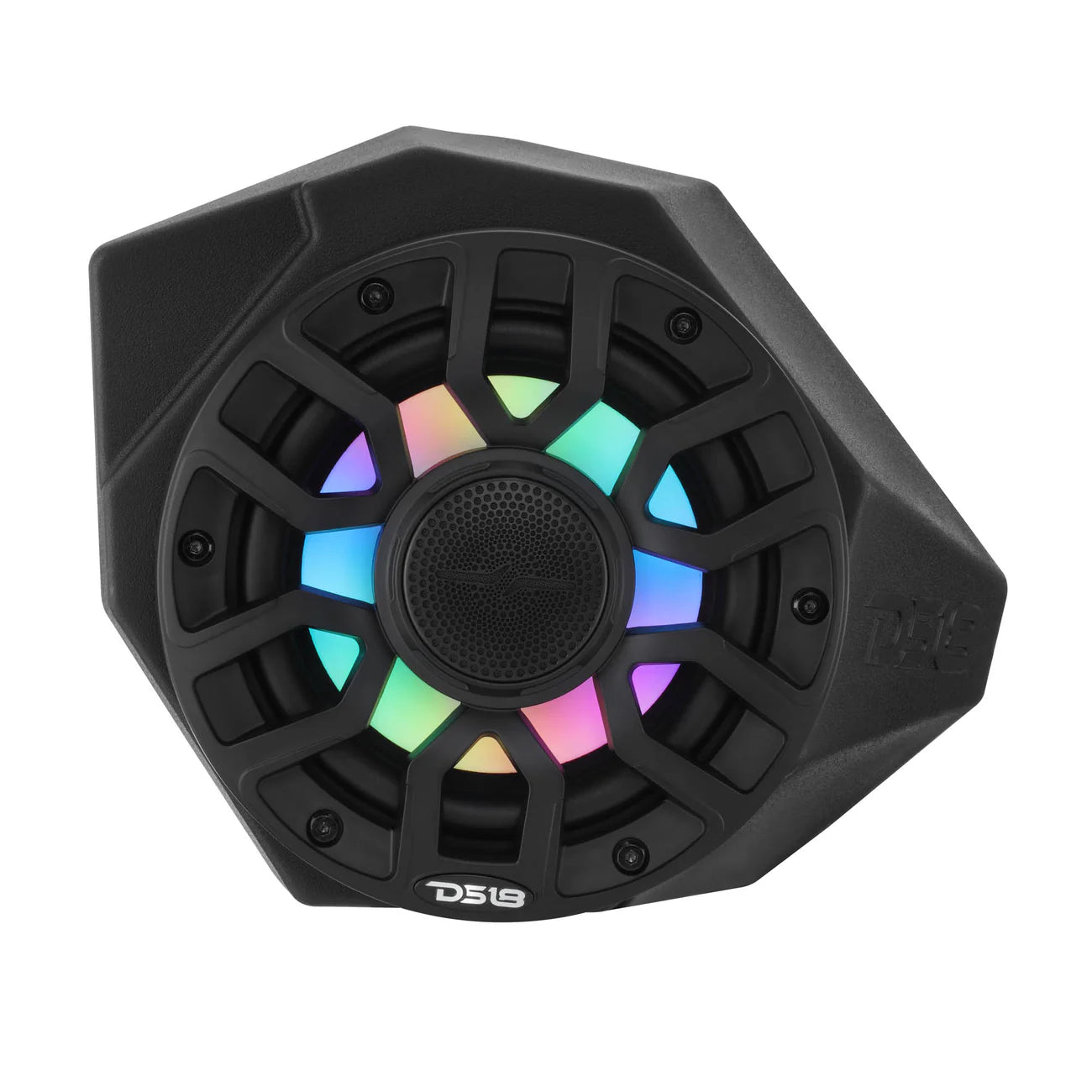

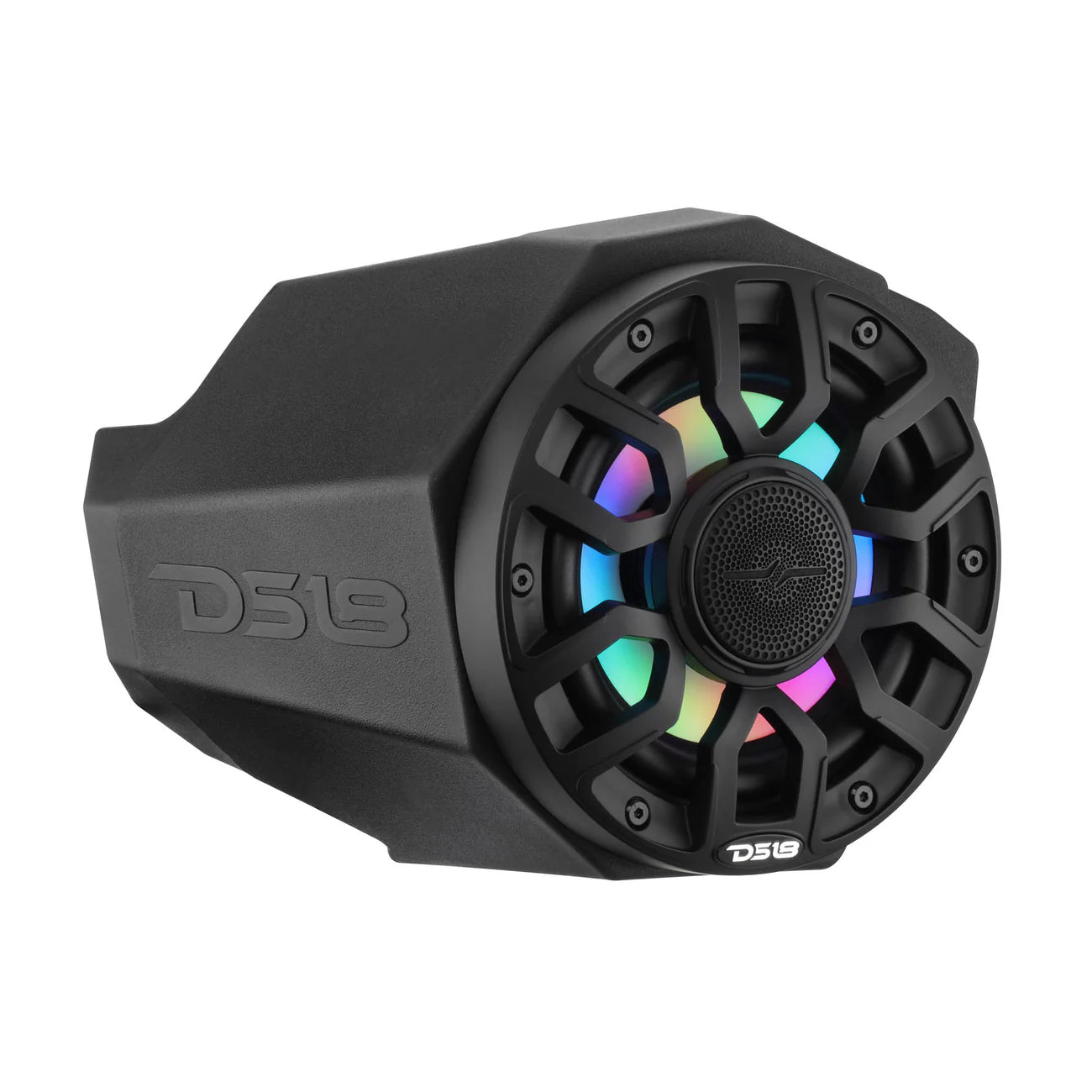

Can-Am X3 Kick Panel Speaker Pods Loaded with (2) NXL-IQ6/BK Speakers and Digital LED lighting Included

Upgrade Your Can-Am Maverick X3

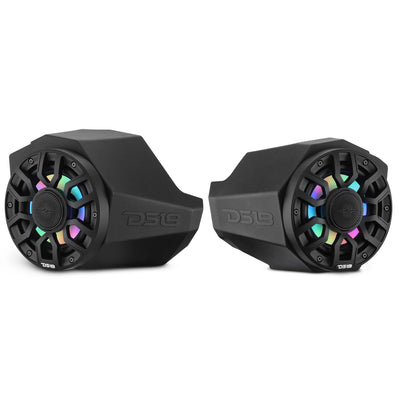

The CA-X3KP6LD speaker panel pods are designed to easily integrate 6.5” coaxial speakers into the kick panel location of your Can-Am Maverick X3 (2017 and newer models). These pods come loaded with two NXL-IQ6/BK coaxial speakers for seamless installation. The CA-X3KP6LD comes in pairs, one for the driver side and one for the passenger side.

OEM Fit

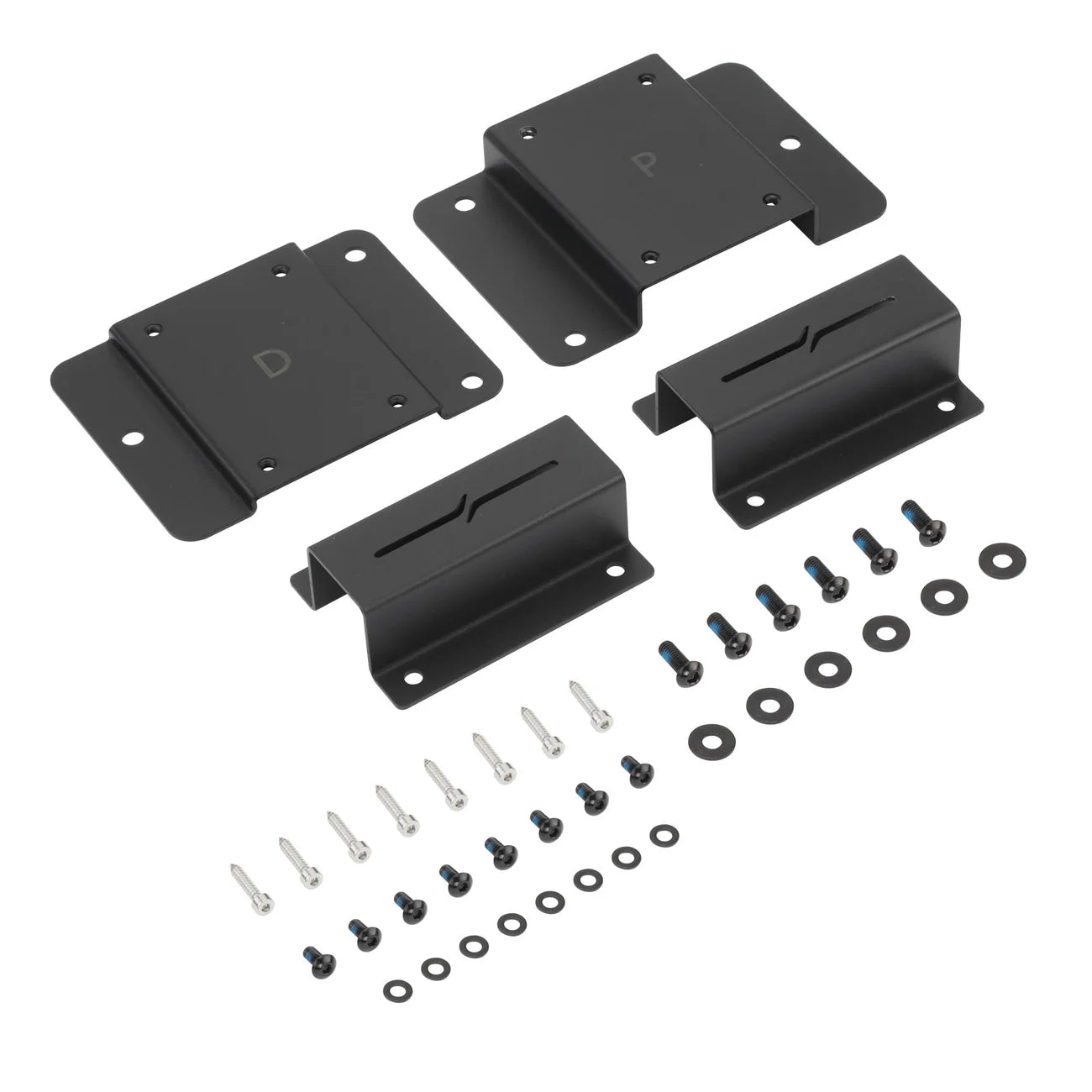

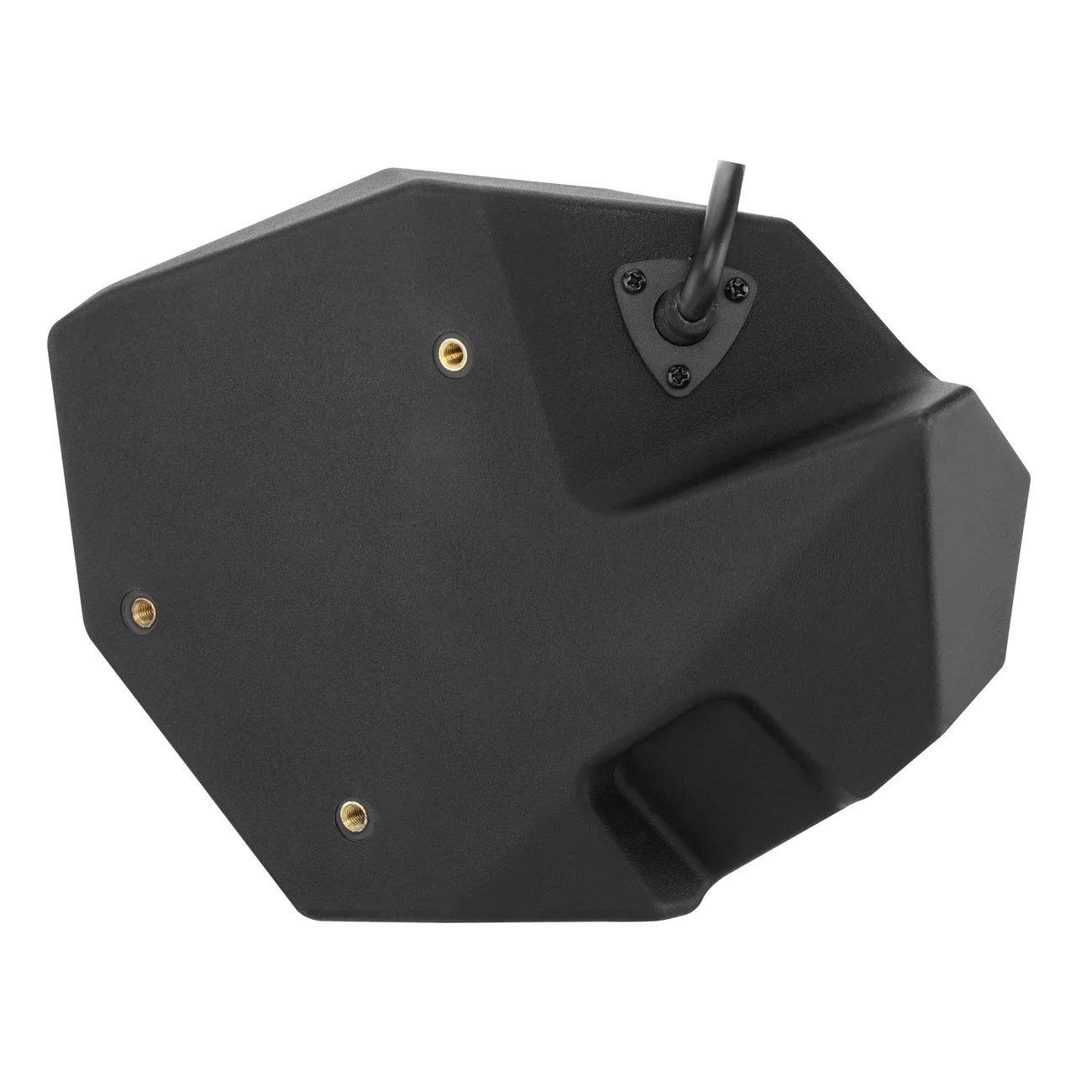

Every dimension of these pods is engineered to match the layout of your Can-Am X3 for a seamless fit. With a black finish, these pods look like they came factory-installed. Metal brackets are included to securely mount the pods to the vehicle’s chassis for a stable installation.

Light Up the Trail
The NXL-IQ6/BK speakers feature built-in digital LED lighting, adding a customizable visual accent to match your style. The lighting is controlled through DS18’s LC-DRM module (required, sold separately) using the DS18 LC App, available for iOS and Android.

Clean and Powerful Output
Each NXL-IQ6/BK speaker handles 150W RMS and features floating bullet tweeters, delivering powerful and balanced sound. With waterproof terminals and an IP65 water-resistance rating, these speakers are built to handle outdoor conditions.

Designed for Can-Am
DS18’s CA-X3 series is engineered for OEM fitment in Can-Am Maverick X3 models. Our commitment to powersports enthusiasts has driven the development of enclosures that integrate seamlessly into your vehicle.

General

Total Impedance
4-Ohm (Each)
Load Configuration
Individual Speaker
Input Wire
5 Core OFC Tinned (Speaker + Digital LED)
OEM Fit
Yes
Compatible Model / Year
Maverick X3 / 2017-Up 2 & 4 Door models


Speaker Specifications (NXL-IQ6/BK)

Speaker Type / Size
6.5" Marine Grade Coaxial Speaker with Digital LED Lights and Bullet Tweeter
RMS Power Handling
150W
MAX Power Handling
300W
Sensitivity (1w/1m)
95dB
Frequency Response
45Hz - 20KHz
Recommended High-Pass Crossover
60Hz
Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Cone Material
PPI
Surround Material
Rubber
Basket Material
Injection Molded Composite PC with UV Protection coating
Magnet Material
Ferrite + Neodymium
Magnet Weight
13 oz + 1.1oz


Tweeter Specifications (NXL-IQ6/BK)

Speaker Type / Size
Floating Bullet Tweeter
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminum
Bullet Material
Injection Molded Composite PC with UV Protection coating
Magnet Material
Neodymium (N35H)
Magnet Weight
0.4 Oz


Box Specifications

Box Type
Sealed
Box Material
Polyethylene (PE)
Finish Material
Black
UV Protection
YES
Waterproof Rating
IP65


Measurement

Overall Height
8.19" / 208mm
Overall Width
10.2" / 259mm
Overall Depth
8.72" / 221.5mm

Free shipping on orders $100+

FAQs

Please read our FAQs page to find out more.

RMS vs. MAX power — which number do I actually care about?

RMS is what your gear handles continuously; MAX is the short burst it can survive without complaint. Match your amplifier's RMS output to your speakers' RMS rating — sizing off the MAX number is how magic smoke gets released.

What does the IP65 rating on DS18 marine gear actually mean?

It's dust-tight and rated against low-pressure water jets from any direction — built for spray, rain, and the occasional wave over the bow, not for full submersion. If something's going somewhere it could sit underwater, that's a different conversation entirely.

How do I match an amplifier to my speakers without guessing?

Add up the RMS rating of everything the amp will power, and pick an amp whose RMS output (at your speakers' impedance — usually 4-ohm) lands close to that total. Undersized is thin sound; wildly oversized is a fast way to blow a voice coil.

Can I mix marine-grade gear into a standard car audio setup, or the reverse?

You can run marine-grade gear in a car — it's just over-built for that environment, no downside besides cost. Running non-weatherproof car audio gear in an open UTV or boat is the direction that causes problems.

What gauge wiring kit do I need?

It scales with your amp's power draw and the length of the run — DS18's OFC kits come in 4-gauge and 8-gauge for a reason. Undersized wiring on a high-draw system is a voltage-drop and heat problem waiting to happen; when in doubt, size up.
