Product Overview

Description

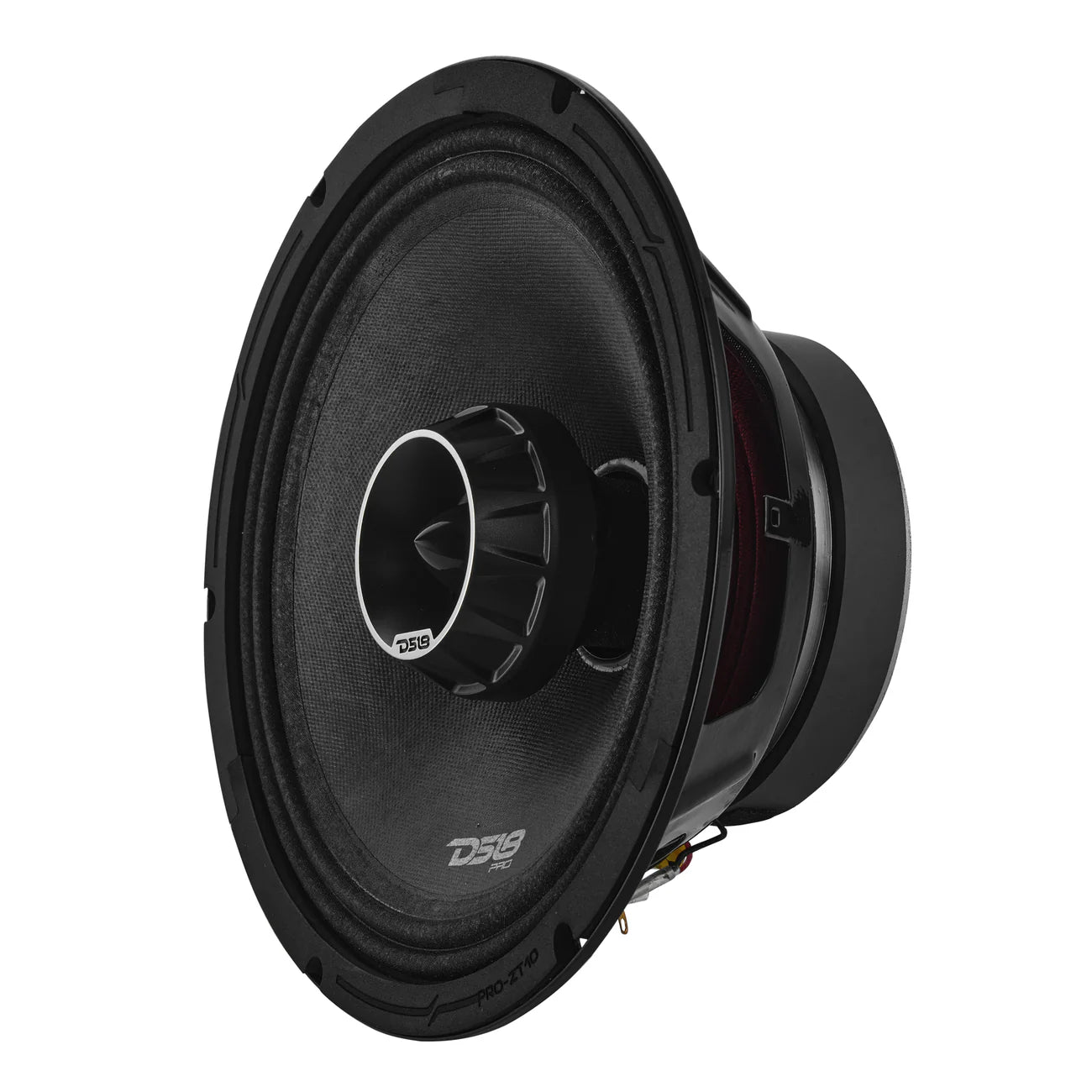

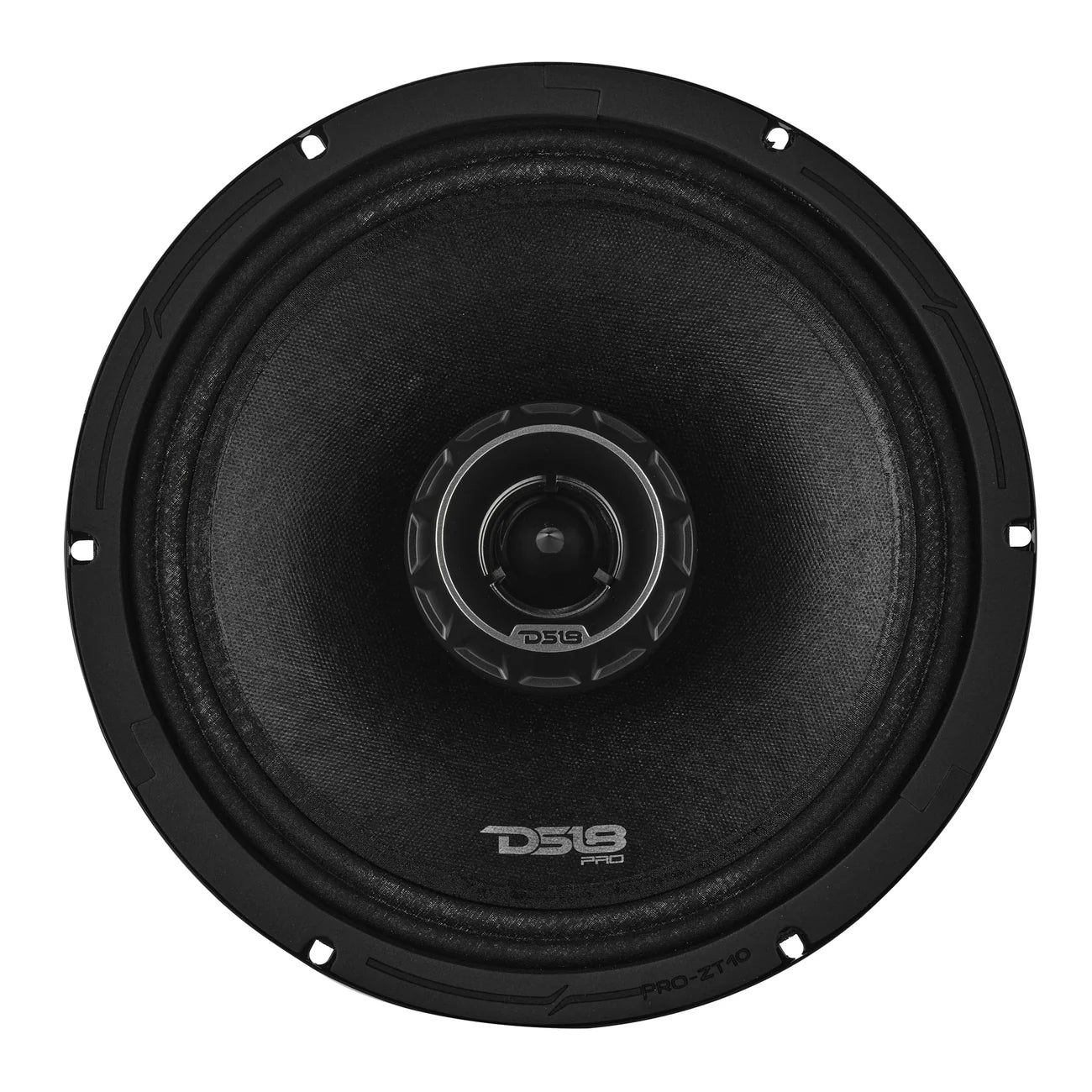

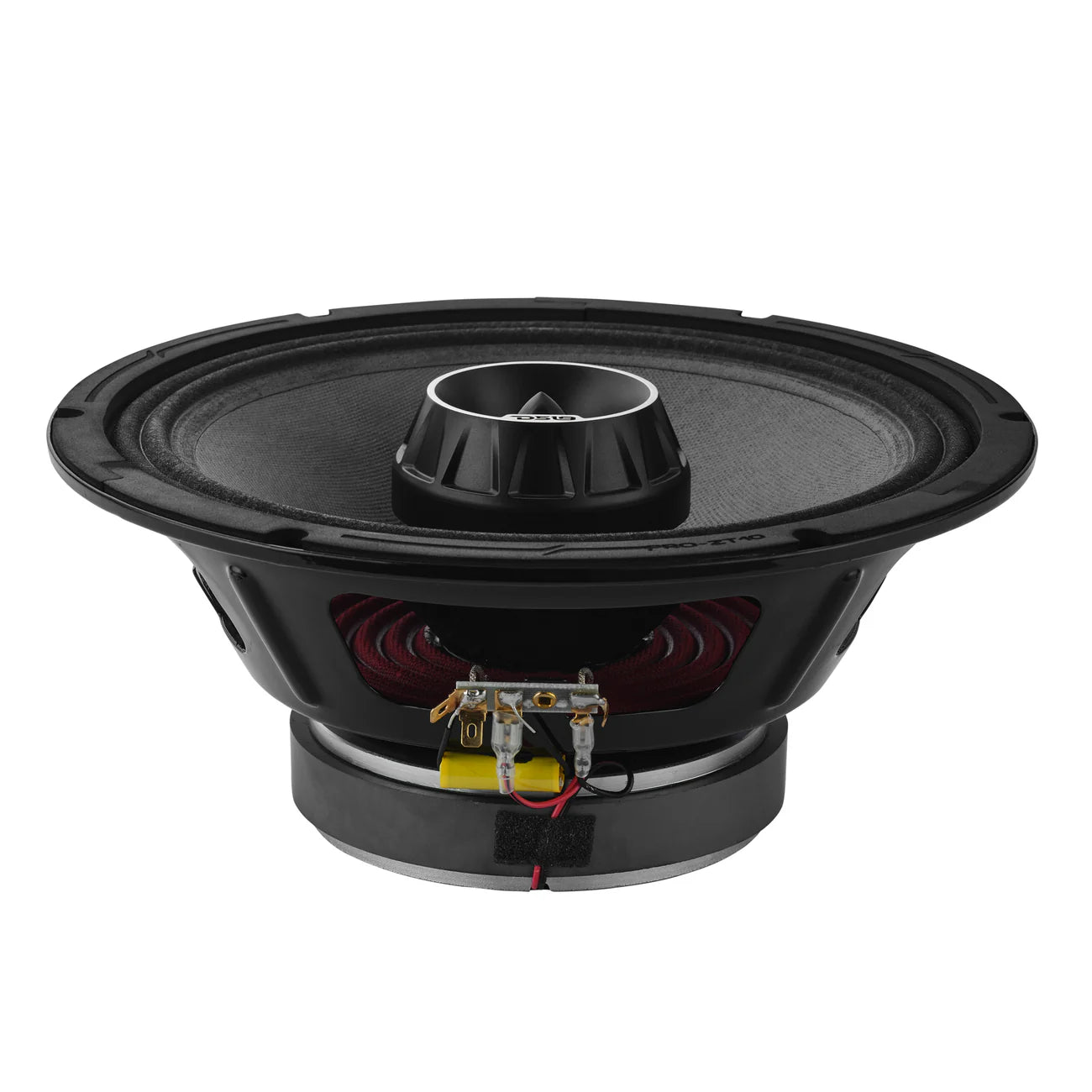

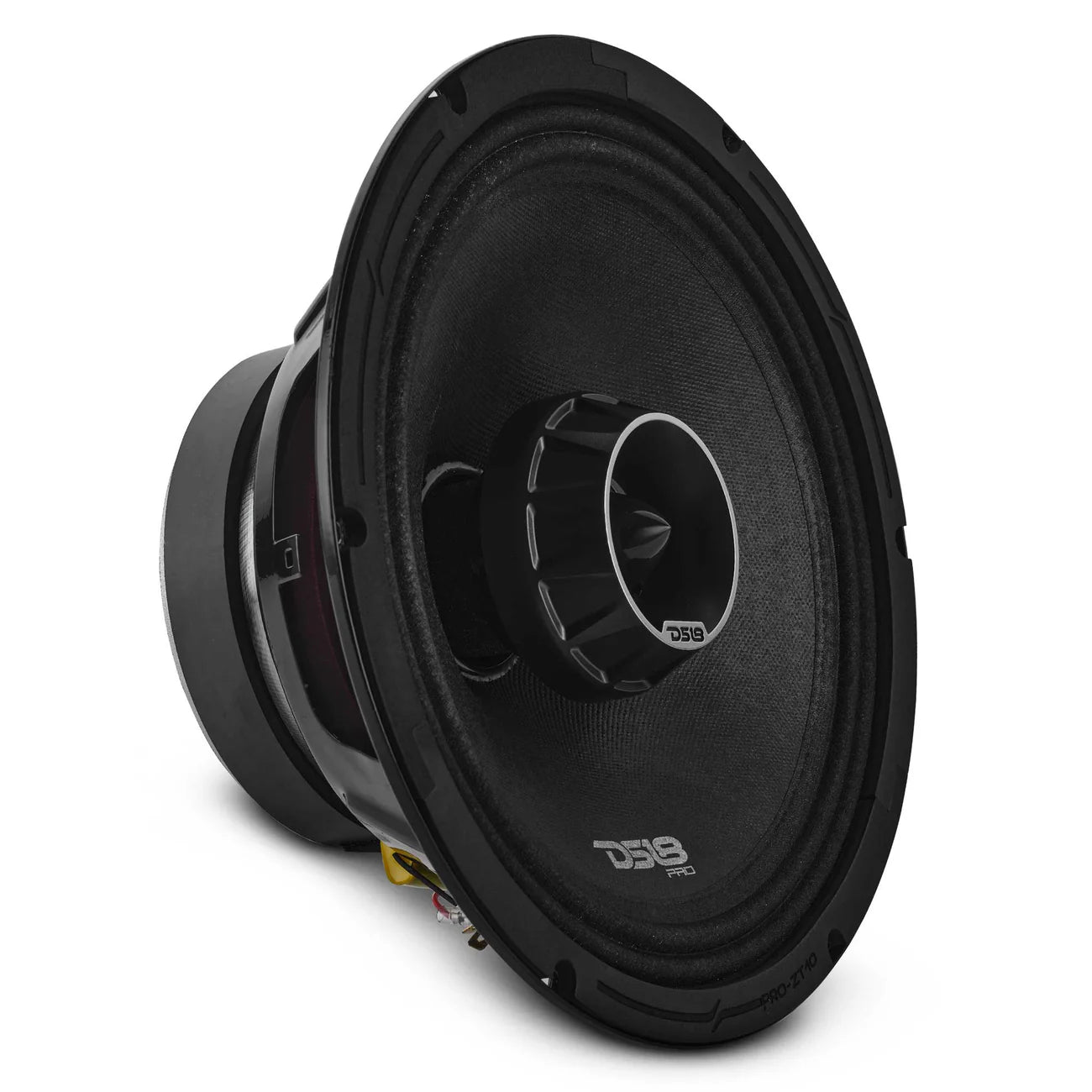

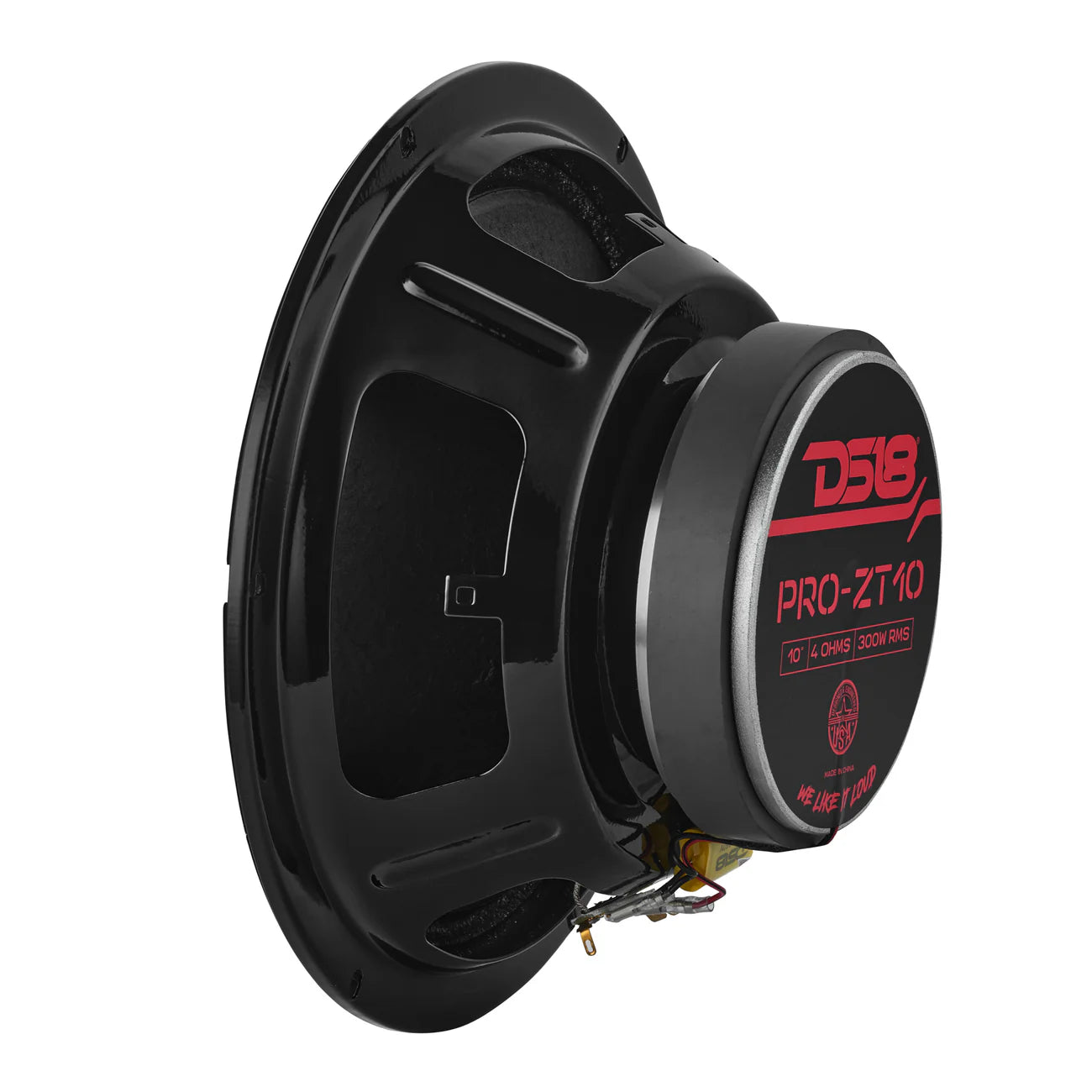

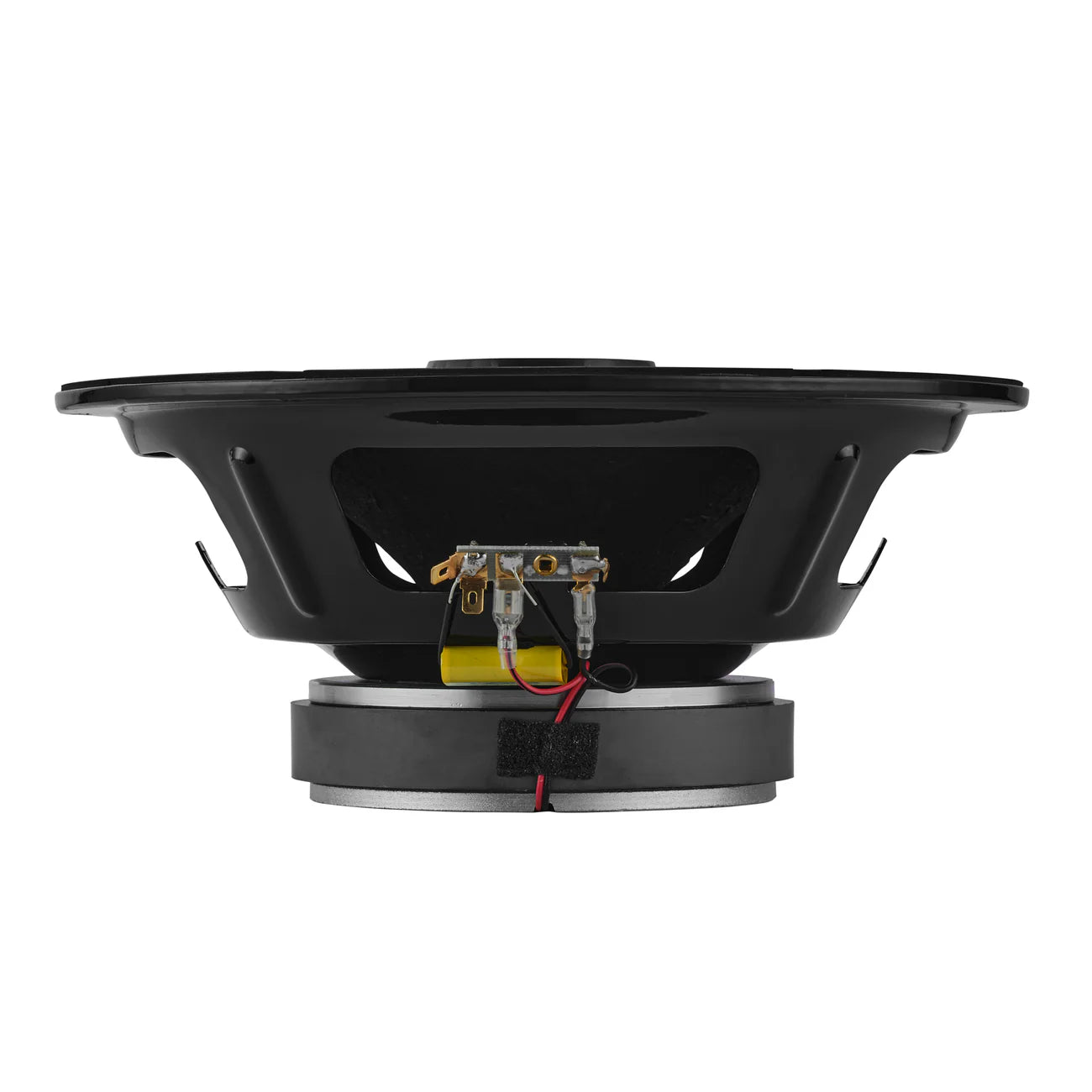

10" Key Features

  • 10" Coaxial Midrange (300W RMS / 600W MAX)
  • Water-Resistant Cone with Treated Cloth Surround (IP32 Rated)
  • 2" Kapton Voice Coil + 1.5” Aluminum Bullet Tweeter
  • Wide Frequency Response: 45Hz–20KHz
  • High Sensitivity: 100.3dB

Specifications

Nominal Diameter
10" / 254mm
Nominal Impedance
4-Ohm
RMS Power Handling
300W
MAX Power Handling
600W
Sensitivity (1w/1m)
100.3 dB
Frequency Response
45Hz-20kHz
Recommended HI Pass Crossover
60Hz
Pair or Single
Single
Grill Included
No
Voice Coil Water Protection
No
Water-Resistant Rating
N/A


Motor

Voice Coil Diameter
2" / 50.6mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Water-Resistant Paper
Surround Material
Treated Cloth
Basket Material
Steel
Basket Color/Finish
Glossy Black
Magnet Material
Ferrite
Magnet Weight
40 Oz


Tweeter Specifications

Voice Coil Diameter
1.5" / 38mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminum Alloy
Magnet Material
Neodymium (N38H)
Magnet Weight
1.3 Oz


Thiele & Small Parameters

Equivalent Volume
21.6L / 0.762ft3
Excursion (one way)
1.7mm
Free Air Resonance
76Hz
Mechanical Factor (Qms)
3.92
Electrical Factor (Qes)
0.65
Total Factor (Qts)
0.56
Mechanical Mass
35.5g
Mechanical Compliance
0.122 mm/N
BL Factor
8.98
Voice Coil Inductance
0.23 mH
Cone Area
352.99 cm2
DC Resistance
3.2 ohms
Mechanical Mass w/o Air
18.346g


Measurement

Overall Diameter
10.26" / 260mm
Overall Depth
4.62" / 117mm
Front Mount Baffle Cutout
9" / 230mm
Mounting Depth
4" / 105mm
Motor Diameter
5.28" / 134mm

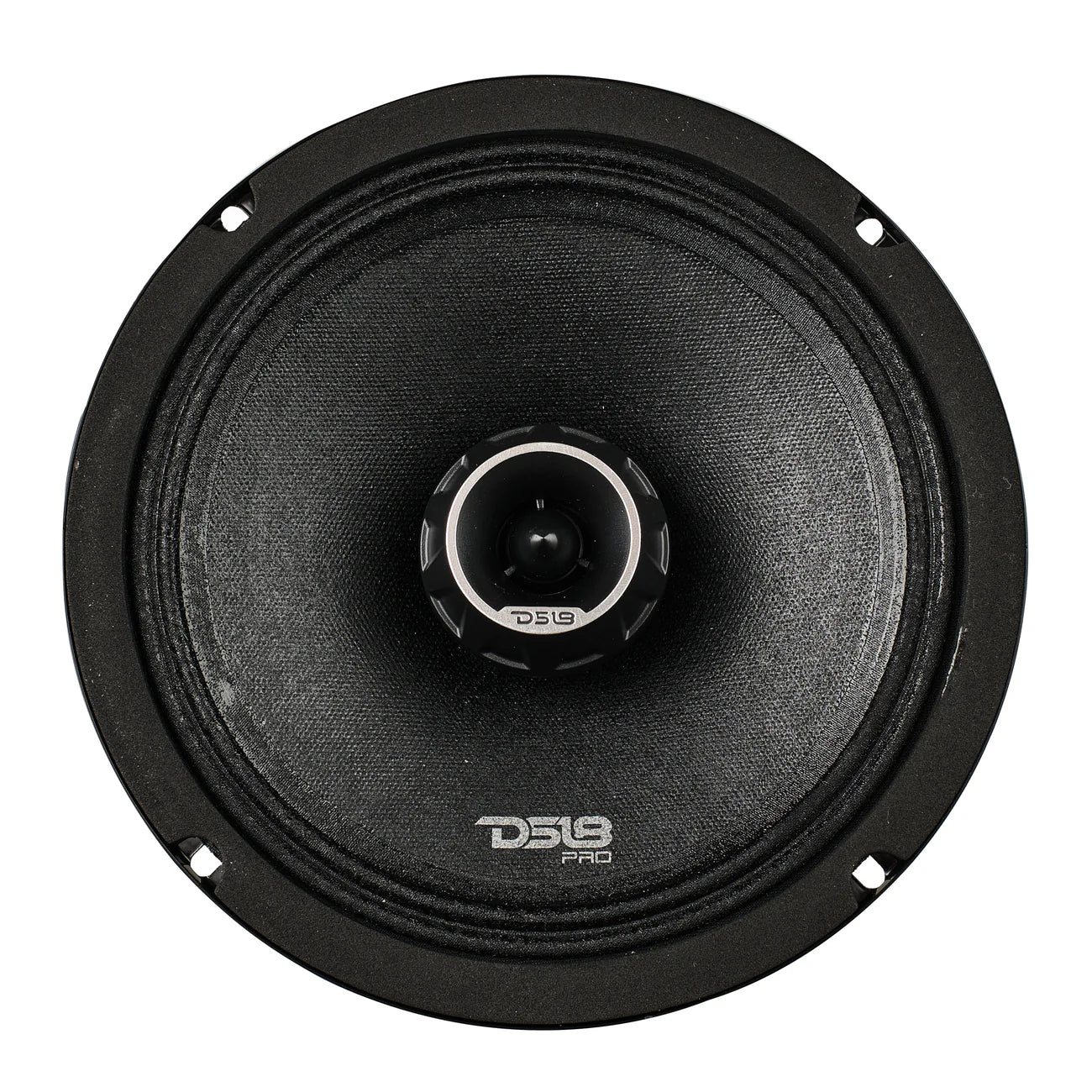

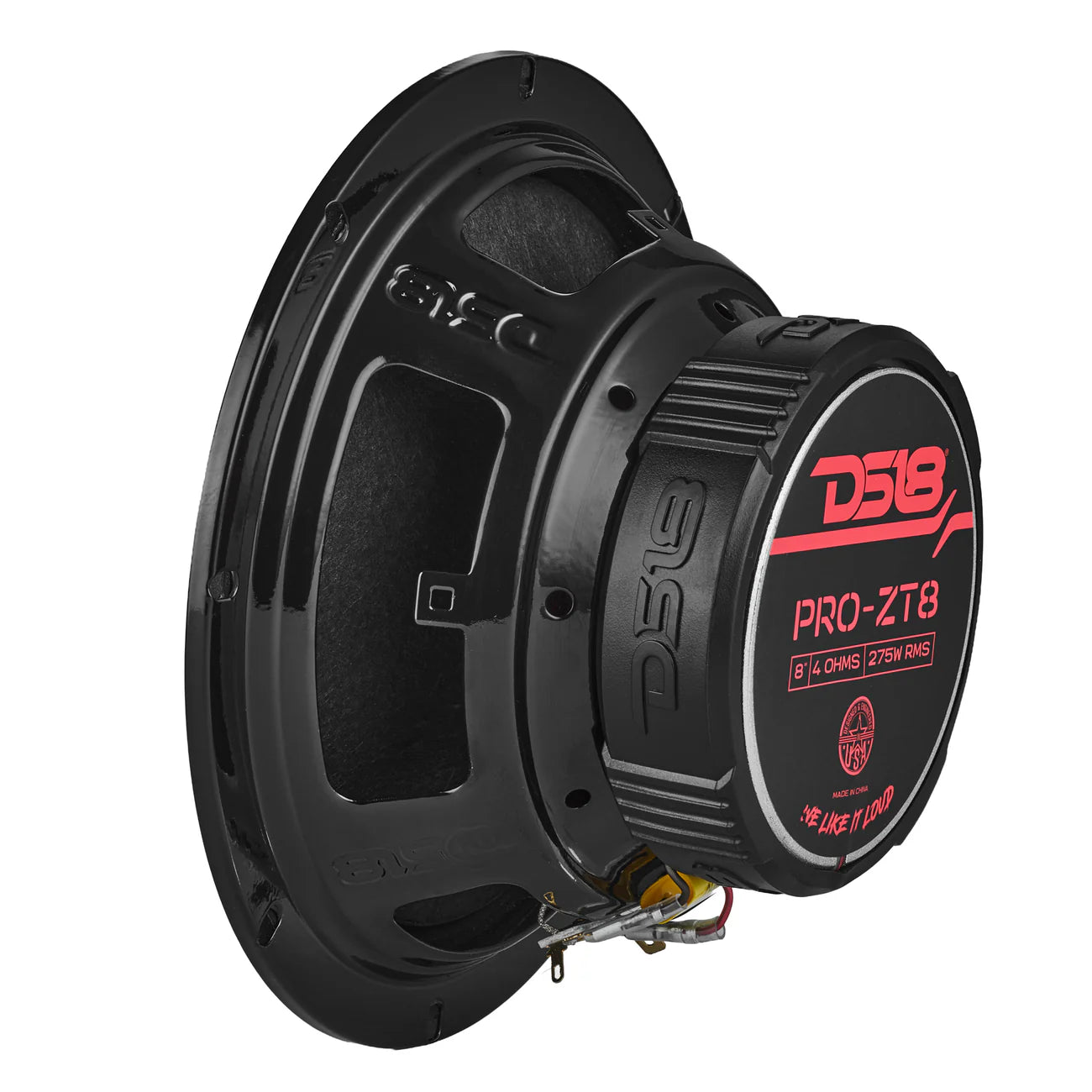

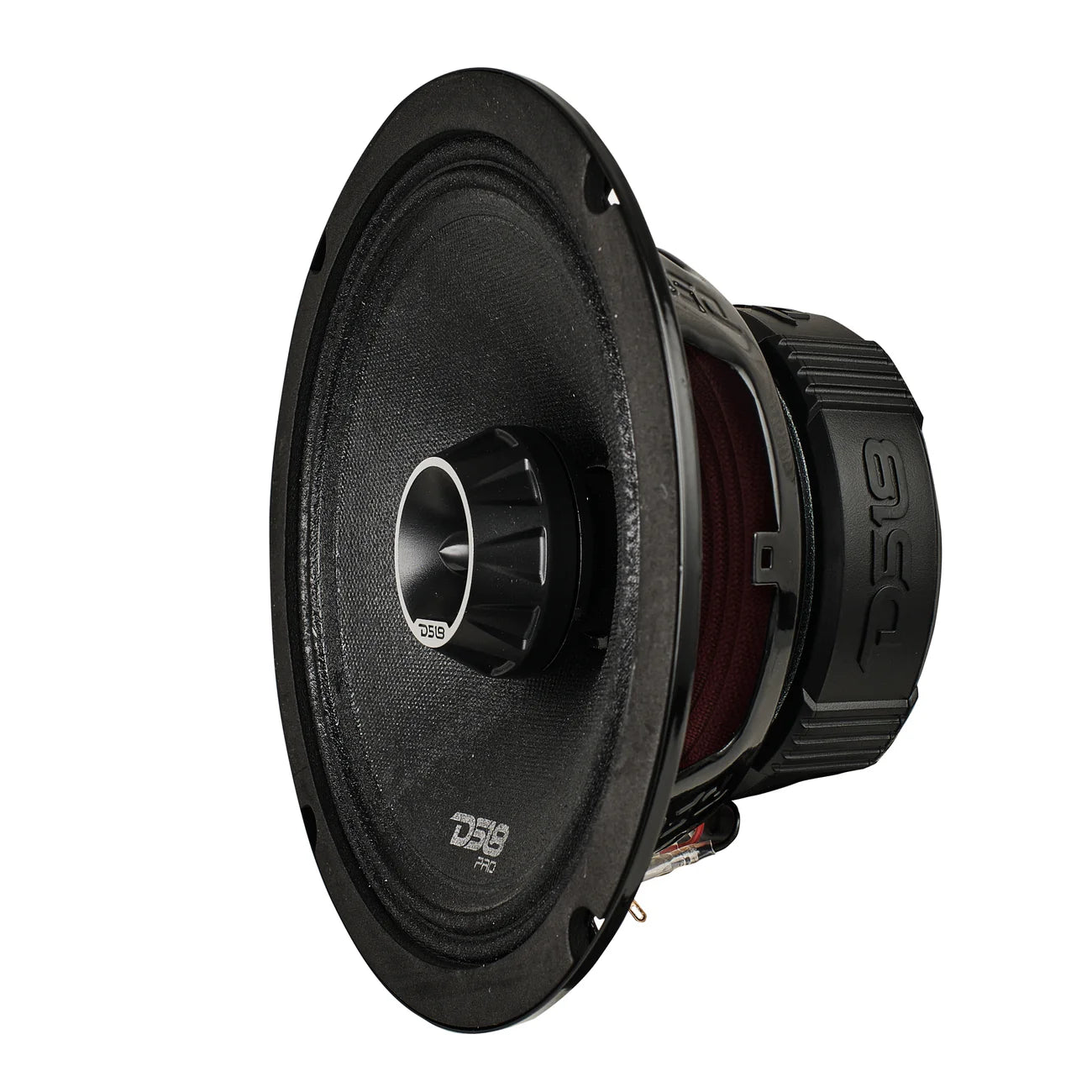

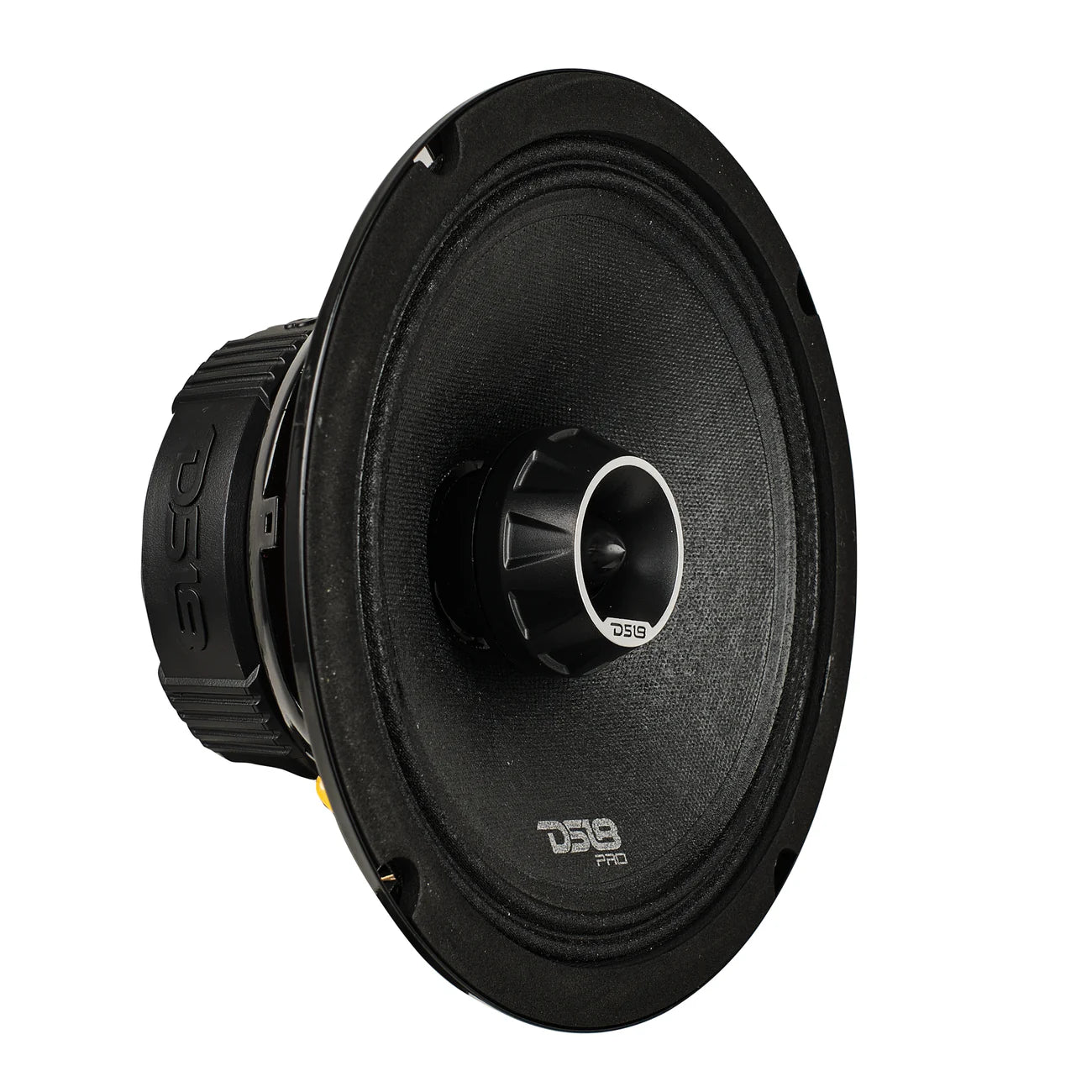

8" Key Features

  • 8" Coaxial Water Resistant Mid-Range
  • RMS Power: 275W (550W Peak)
  • Impedance: 4-Ohm
  • Ferrite & Neodymium Magnet

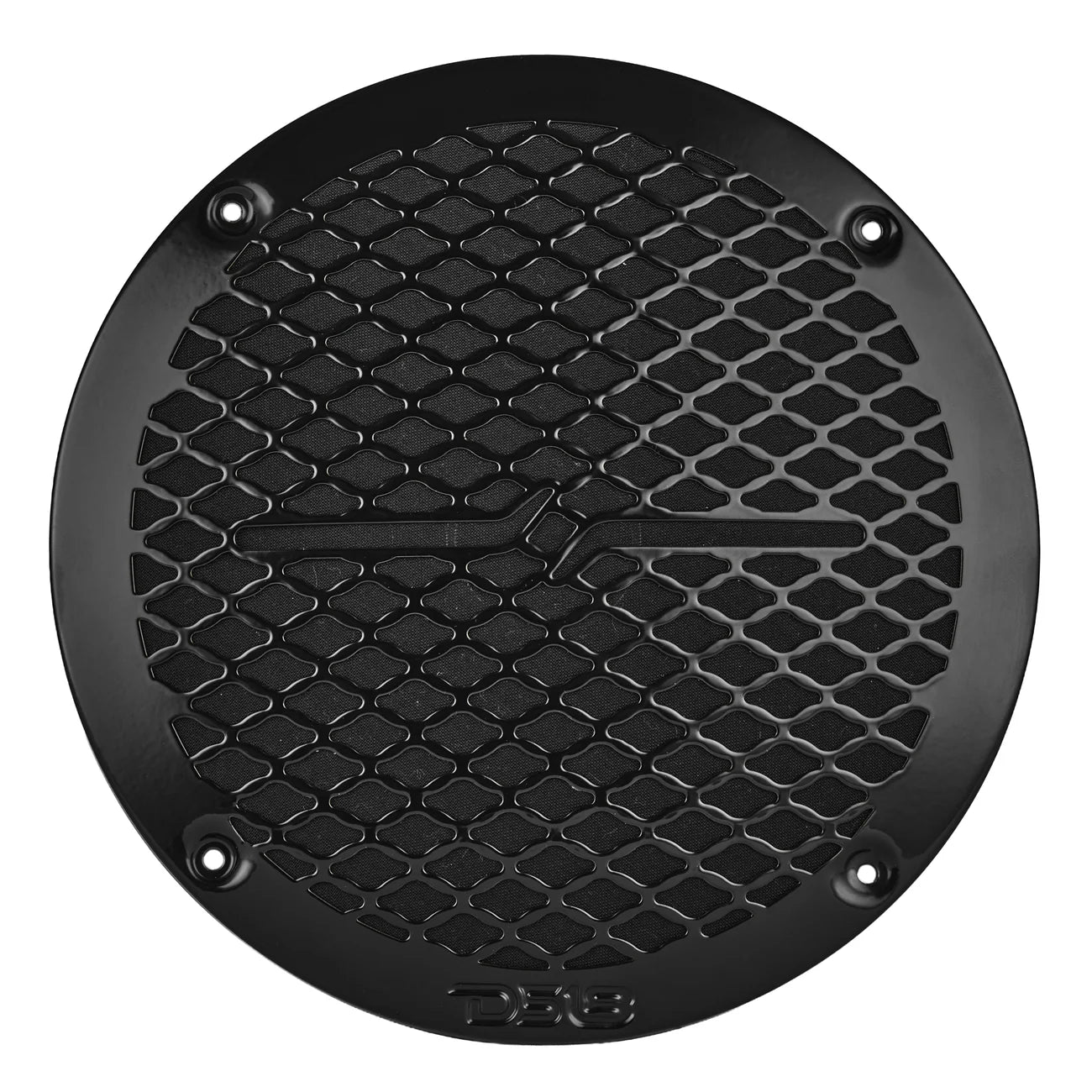

  • Grill with Cloth Shade
  • 98dB

SPECS

SKU
PRO-ZT8
Nominal Diameter
8" (203.2 mm)
Nominal Impedance
4 ohms
RMS Power Handing
275 Watts
Maximum Power Handing
550 Watts
Sensitivity (1w/1m)
98dB
Frequency Response
65Hz-22KHz
Recommended Hi Pass Crossover
80 Hz


SPECS

Voice Coil Diameter
1.5" (38.1 mm)
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Steel
Magnet Weight
27 oz


THIELE & SMALL PARAMETERS

Vas
12.4021 LTR
Xmax
16 mm
Fs
110 Hz
Qms
3.906
Qes
0.76
Qts
0.636
Re
3.2 ohms


MEASUREMENTS

Overall Diameter
214 mm (8.42")
Front Mount Baffle Cutout
181 mm (7.13")
Mounting Depth
91 mm (3.58")
Overall Depth
113 mm (4.44")
Product Weight
5.5 lbs
Product Dimensions
9.5 x 9.5 x 5.5
M/C Weight
47.5 lbs
M/C Dimensions
19.75 x 20 x 12
M/C QTY
8
Sold In
Piece

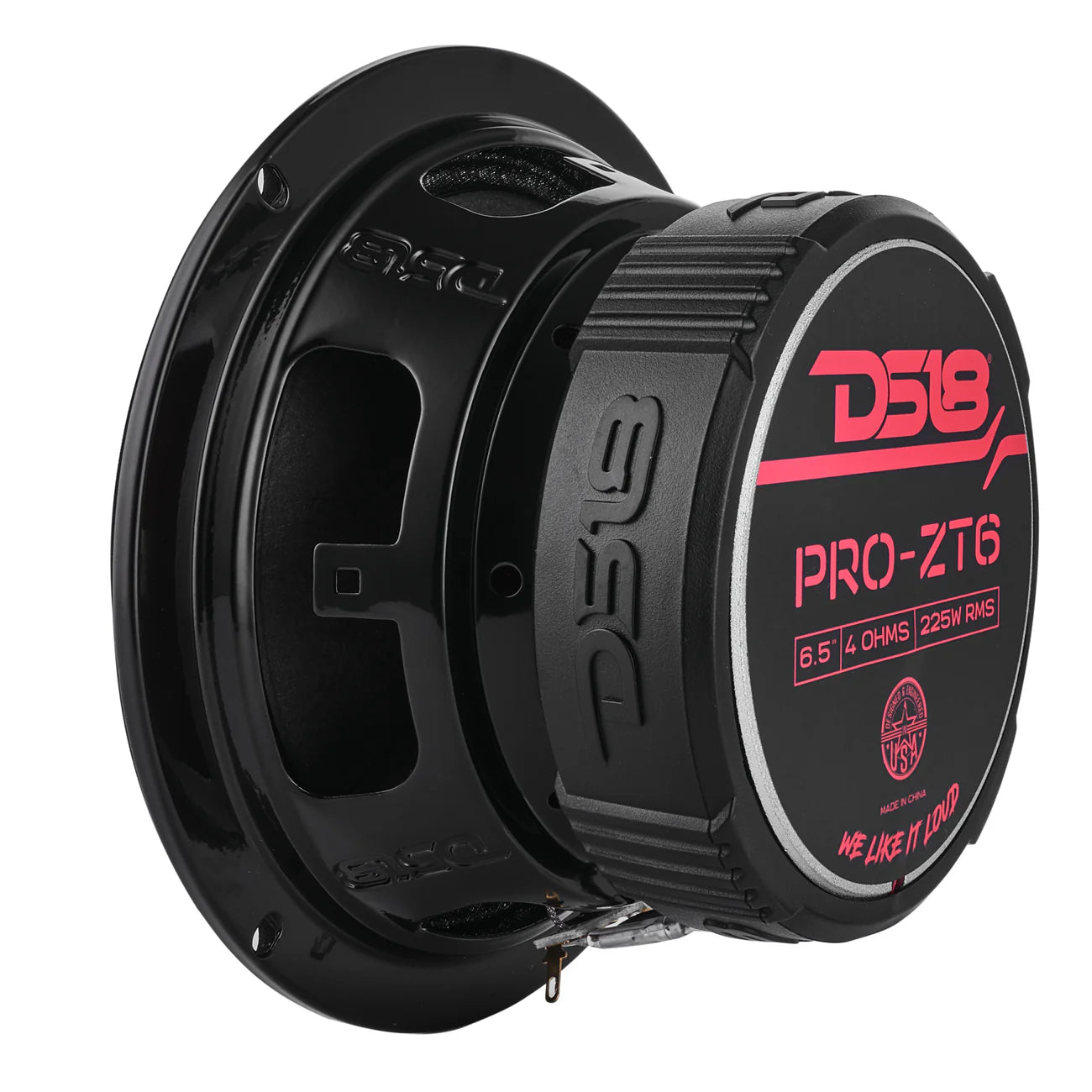

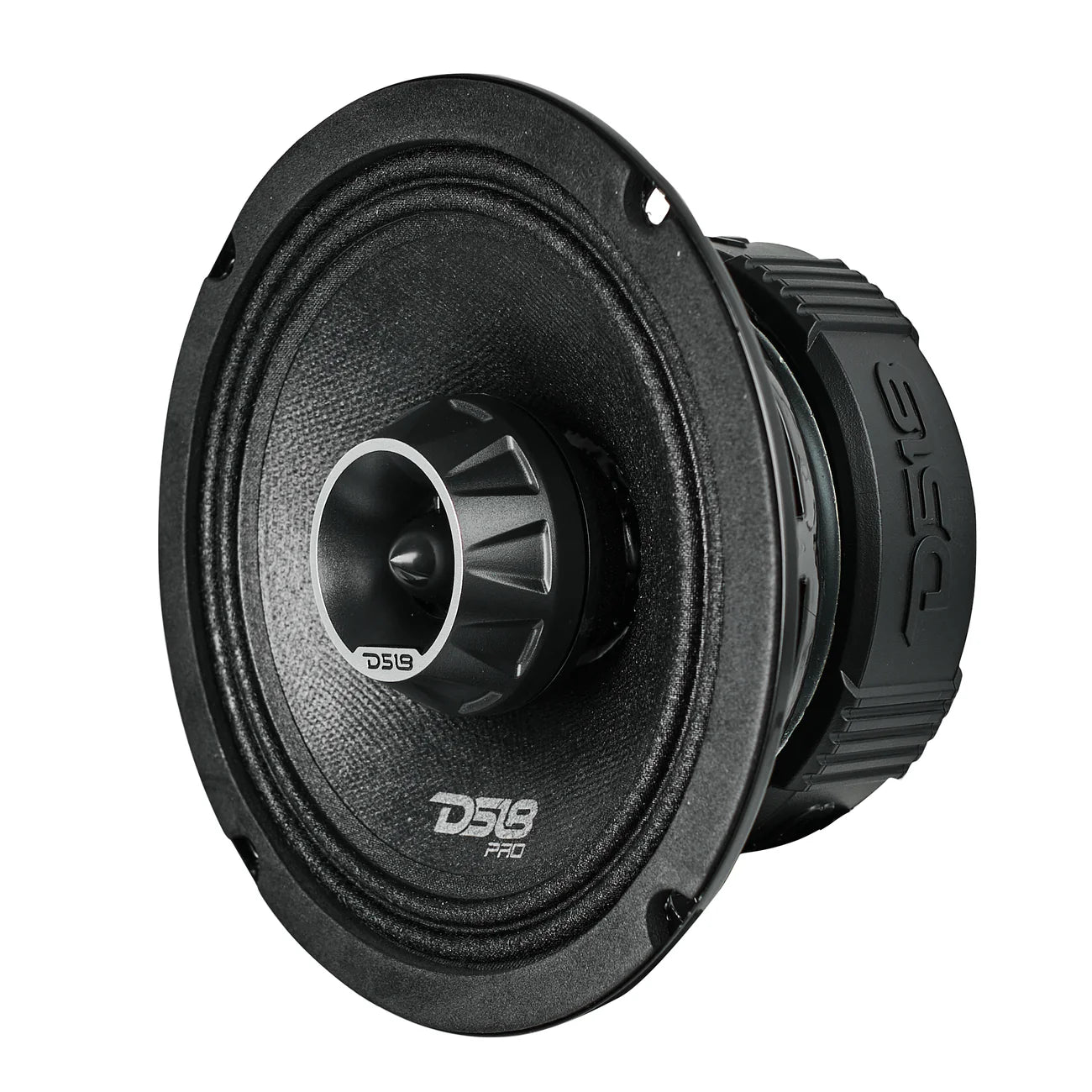

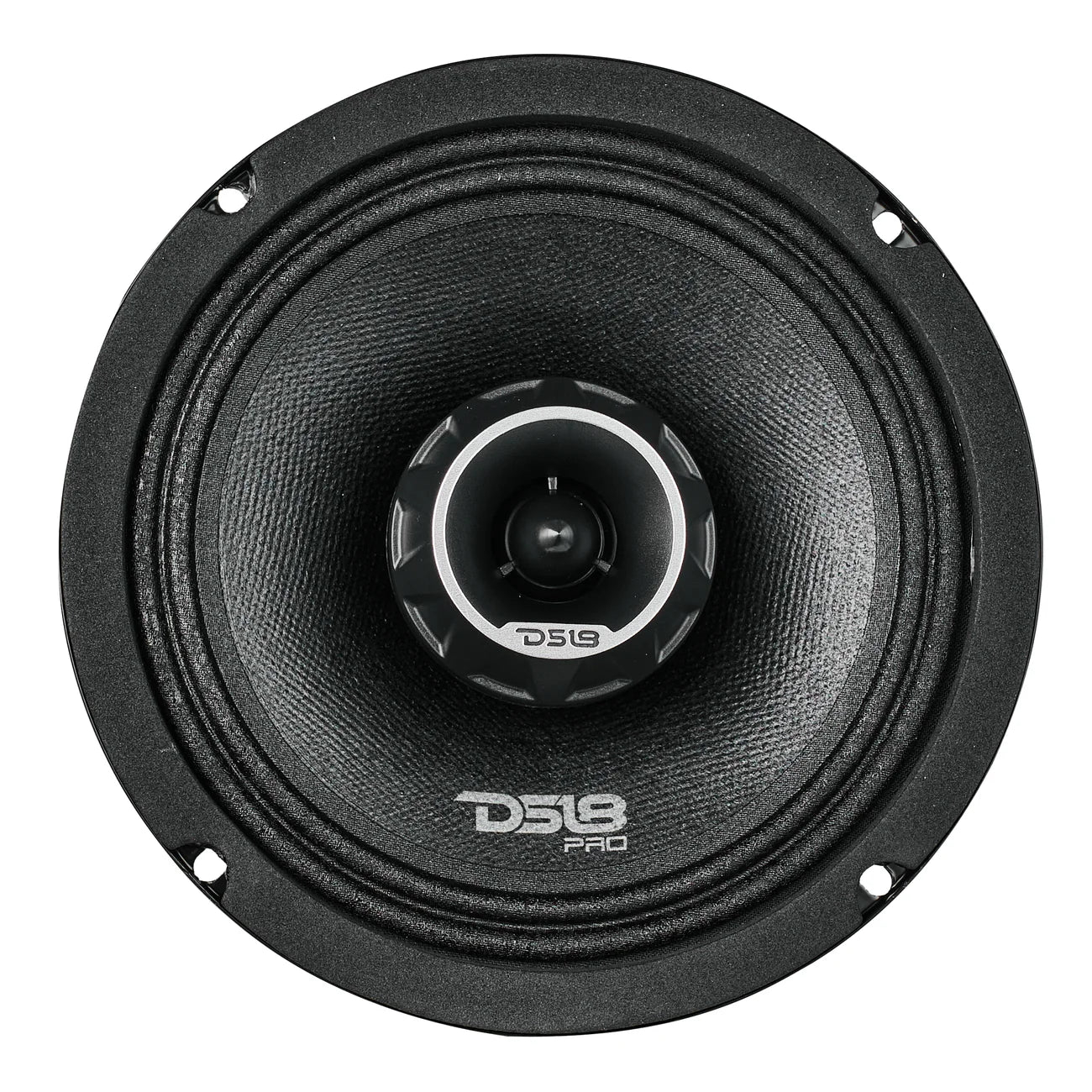

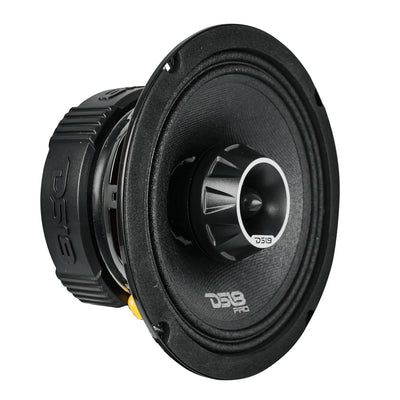

6.5" Key Features

  • 6.5" Coaxial Water Resistant Mid-Range
  • RMS Power: 225 Watts (450 Watts Peak)
  • Impedance: 4-Ohm
  • Ferrite & Neodymium Magnets
  • Grill with Cloth Shade
  • 97dB

SPECS

SKU
PRO-ZT6
Nominal Diameter
6.5" (165.1 mm)
Nominal Impedance
4 ohms
RMS Power Handing
225 Watts
Maximum Power Handing
450 Watts
Sensitivity (1w/1m)
97dB
Frequency Response
85Hz-20kHz
Recommended Hi Pass Crossover
100 Hz


MOTOR

Voice Coil Diameter
1.5” (38.1 mm)
Voice Coil Former Material
Kapton
Winding Material
CCAW
Basket Material
Steel
Magnet Weight
27 oz
Magnet Material
Ferrite
Cone Material
Water-Resistant Paper
Surround Material
Treated Cloth


TWEETER

Voice Coil Diameter
1”
Voice Coil Material
KAPTON
Winding Material
CCAW
Diaphragm Material
Aluminum Alloy
Magnet Material
Neodymium (N35H)


MEASUREMENTS

Overall Diameter
178 mm (7”)
Front Mount Baffle Cutout
144 mm (5.67”)
Mounting Depth
77 mm (3.03”)
Overall Depth
97mm (3.81”)


THIELE & SMALL PARAMETERS

Vas
4.72L / 0.16ft3
Xmax
1.65mm
Fs
120Hz
Qms
5.259
Qes
0.614
Qts
0.55
Re
3.2 Ohms
